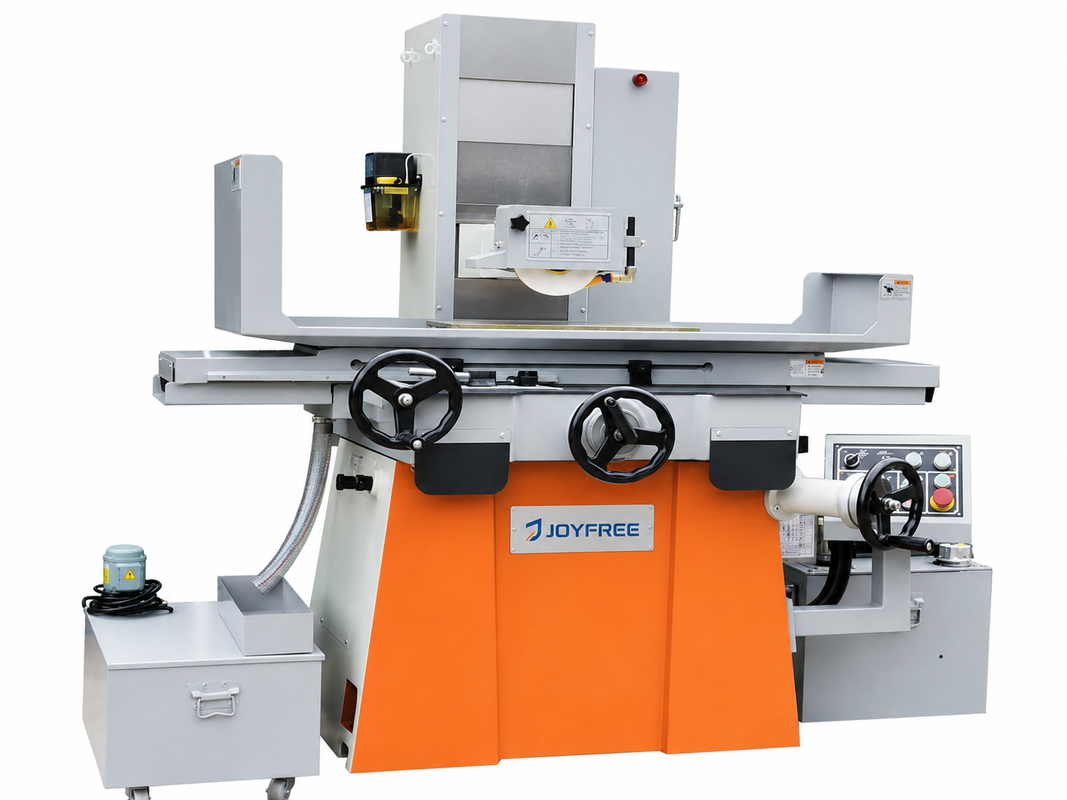

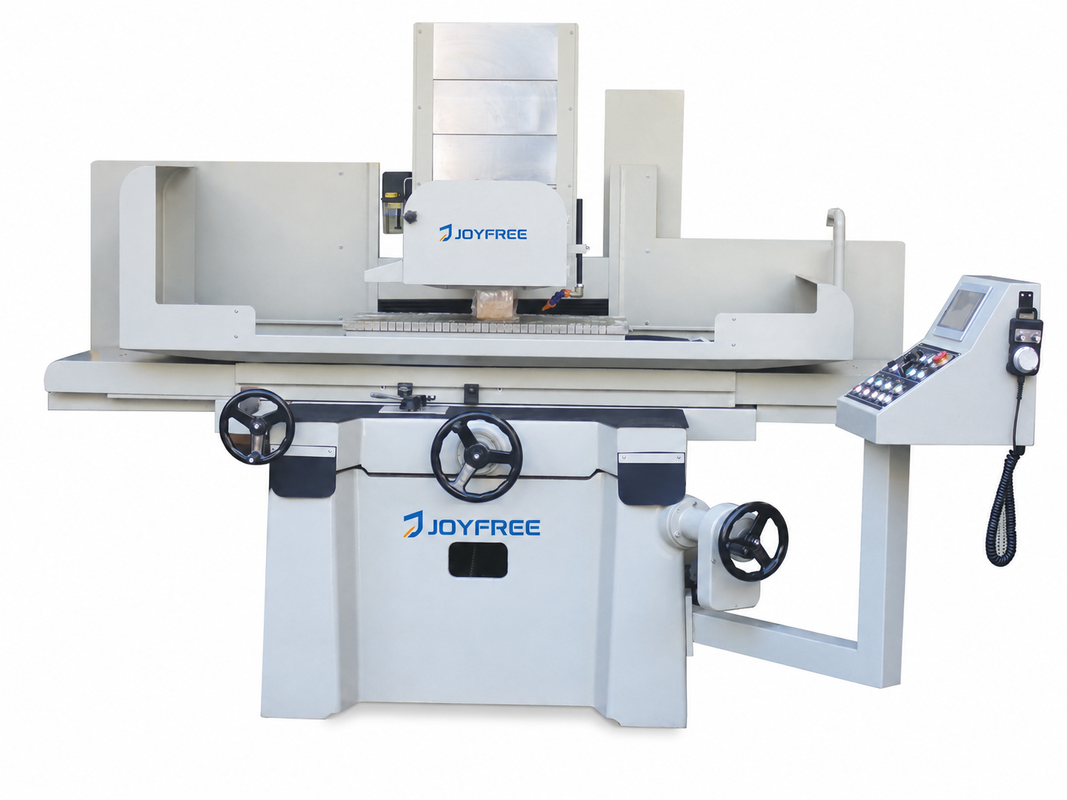

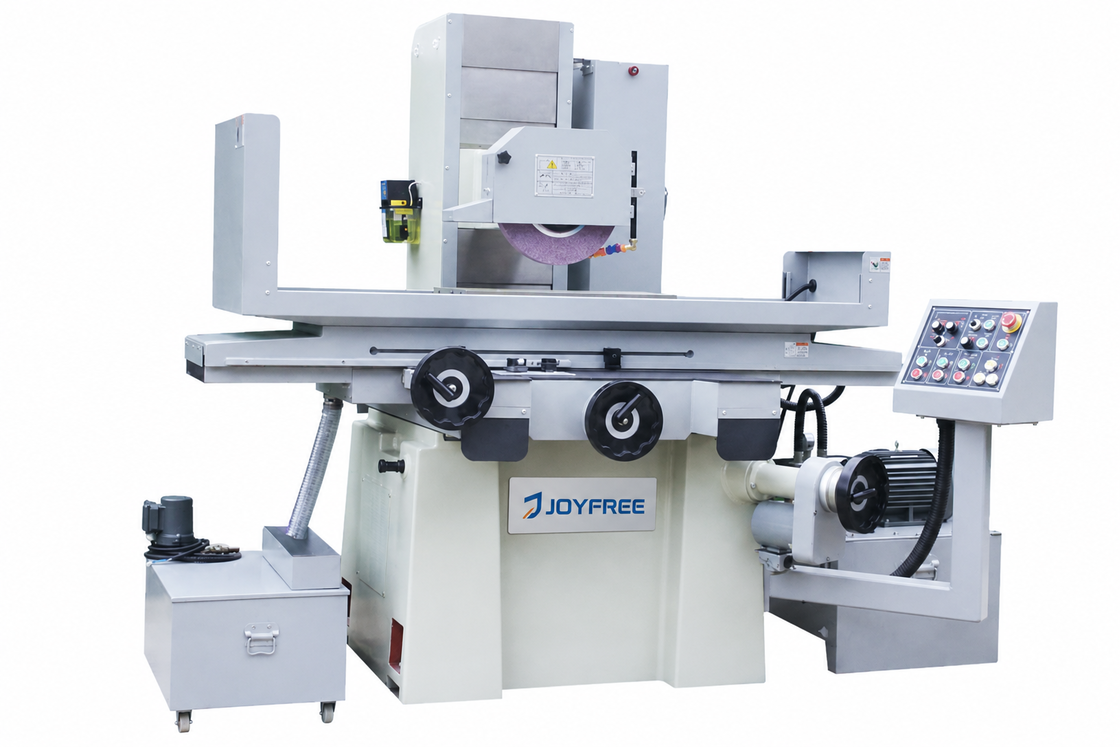

GD-2550 Series Precision Surface Grinder with X/Y Automatic Feed and Optional Z-Axis Control
Product Overview
The GD-2550 Series Precision Surface Grinder is a reliable grinding machine designed for flat surface grinding, mold plate grinding, precision metal part finishing, tool room grinding, fixture grinding, and industrial surface machining. With automatic feeding on the X and Y axes and optional Z-axis control configurations, this machine provides stable grinding performance, flexible operation, and efficient precision surface finishing for different production requirements.
The X-axis and Y-axis automatic feeding system helps improve grinding efficiency and reduce manual operation during repeated surface grinding tasks. It supports smoother table movement, stable feed control, and consistent machining results, making the machine suitable for mold workshops, precision machining factories, hardware processing plants, and batch production applications.
Z-Axis Control Options
The Z axis offers different control options according to customer requirements:
- GD-2550AH: Manual Z-axis control - suitable for users who need simple operation and flexible manual adjustment
- GD-2550AHR: Electric Z-axis control - improves operation convenience and feed efficiency
- GD-2550AHD: Servo automatic Z-axis control - provides higher automation, more accurate feed control, and better repeatability for precision grinding applications
Key Features
- GD-2550 series precision surface grinder for flat surface finishing
- X-axis and Y-axis automatic feeding improves grinding efficiency
- Optional Z-axis control meets different production requirements
- Suitable for mold plates, precision blocks, fixtures, and machinery components
- Helps reduce manual operation during repeated grinding tasks
- Stable feeding supports consistent surface quality
- Flexible configuration for mold workshops and precision machining factories
- Suitable for batch production and tool room grinding applications
Product Images
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GD-2550AH/AHR/AHD |
| Table size | 500×250mm |
| X axis travel | 600mm |
| Y axis travel | 280mm |
| Max center of wheel to table | 490mm |
| The maximum load | 500kg |
| Table T-slot | 14×1 (mm×N) |
| Table speed | 5~30m/min |
| Y axis hand wheel feed per grid | 0.02/5mm |
| Y axis automatic feed | 0.1~8mm |
| Y axis moving speed | 990/1190mm/min |
| Z axis hand wheel feed | 0.005/1mm |
| Wheel size | 180×12.5×31.75mm |
| Wheel speed | 2850/3360rpm |
| Spindle motor | 2×2 HP |
| Hydraulic motor | 1.5×6 HP |
| The Y axis motor | 80W |
| The Z axis motor | -/80/750W |
| Cooling motor | 40W |
| Weight | ≈1350kg |
| Machine size | 2100×1700×1750mm |
Frequently Asked Questions
What is the GD-2550 Series Precision Surface Grinder used for?
It is mainly used for flat surface grinding, mold grinding, metal part finishing, fixture grinding, tool room grinding, and precision surface machining.
Which axes support automatic feeding?
The X axis and Y axis support automatic feeding, helping improve grinding efficiency and reduce manual operation.
What Z-axis control options are available?
The Z axis can be configured with manual control, electric control, or servo automatic control according to production requirements.
What is the difference between GD-2550AH, GD-2550AHR, and GD-2550AHD?
The GD-2550AH uses manual Z-axis control, the GD-2550AHR uses electric Z-axis control, and the GD-2550AHD uses servo automatic Z-axis control.
Which model is better for higher automation?
The GD-2550AHD is more suitable for higher automation requirements because it uses servo automatic Z-axis control.
What workpieces can this surface grinder process?
It can process mold plates, precision blocks, fixtures, machine parts, hardware parts, automotive components, and other flat metal workpieces.
What information is needed for quotation?
Please provide workpiece material, size, grinding accuracy, surface finish requirement, production quantity, preferred Z-axis control type, and optional configuration requirements.
