GD-3060 Series Precision Surface Grinder with X/Y Automatic Feed and Optional Z-Axis Control
GD-3060 Series Precision Surface Grinder with X/Y Automatic Feed and Optional Z-Axis Control
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

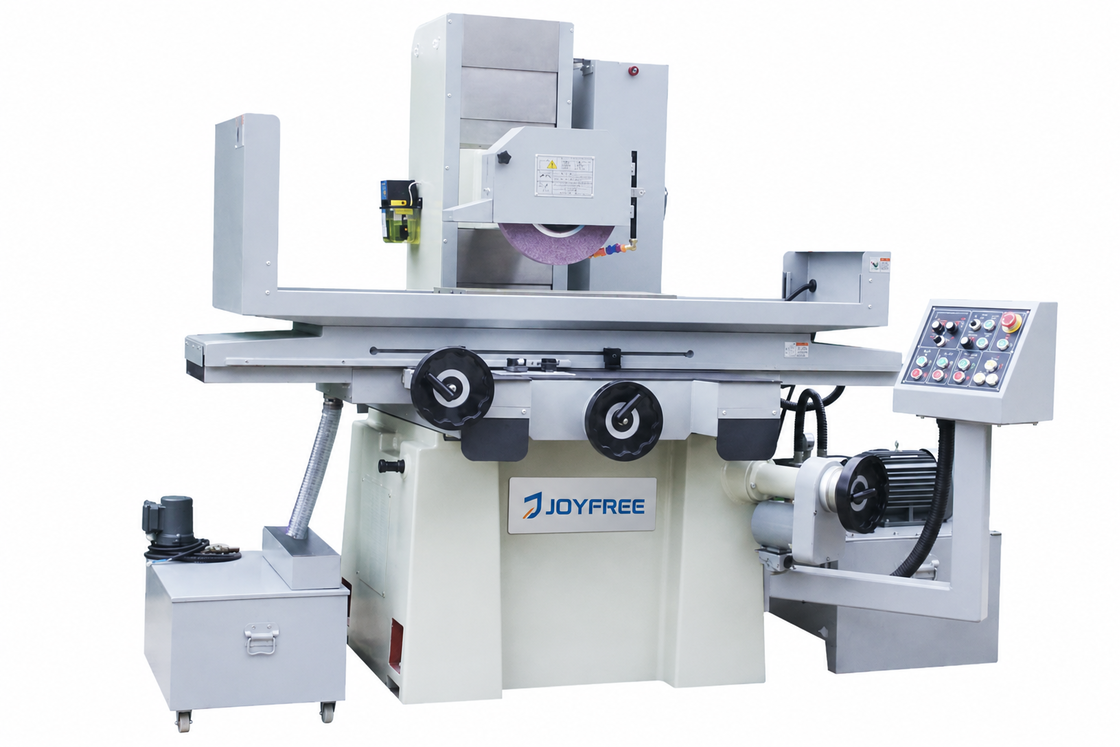

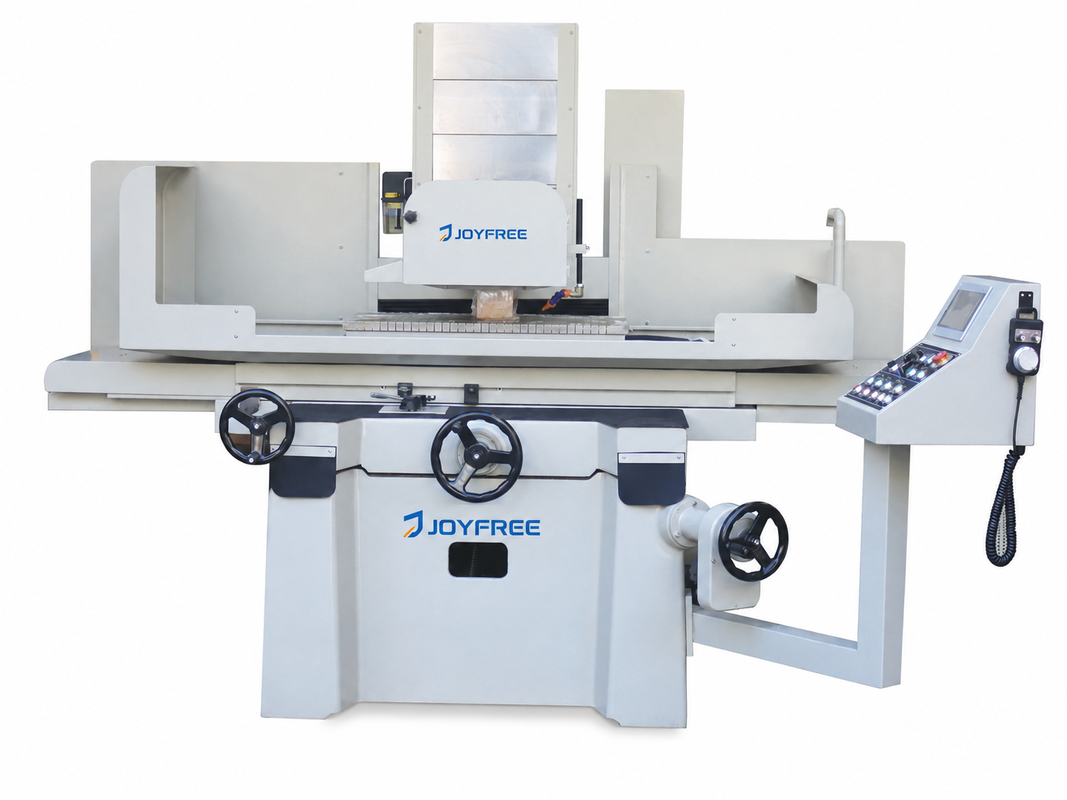

GD-3060 Series Precision Surface Grinder with X/Y Automatic Feed and Optional Z-Axis Control
Product Overview
The GD-3060 Series Precision Surface Grinder is a reliable surface grinding machine designed for flat surface grinding, precision mold grinding, metal part finishing, tool room grinding, fixture grinding, and industrial surface machining. With automatic feeding on the X and Y axes and optional Z-axis control configurations, this machine provides stable grinding performance, efficient operation, and consistent surface finishing quality for precision manufacturing applications.
The X-axis and Y-axis automatic feeding system helps improve grinding efficiency and reduce manual operation during repeated surface grinding tasks. It supports smooth table movement, stable feed control, and consistent machining results, making the machine suitable for mold workshops, precision machining factories, hardware processing plants, tool rooms, and batch production applications.
Z-Axis Control Options
The Z axis offers different control options according to customer requirements:
- GD-2550AH: Manual Z-axis control - suitable for users who need simple operation and flexible manual adjustment
- GD-2550AHR: Electric Z-axis control - improves operation convenience and feed efficiency
- GD-2550AHD: Servo automatic Z-axis control - provides higher automation, more accurate feed control, and better repeatability for precision grinding applications
Key Features
- GD-3060 series precision surface grinder for flat surface finishing
- X-axis and Y-axis automatic feeding improves grinding efficiency
- Optional Z-axis control meets different production requirements
- GD-3060AHR supports electric Z-axis control
- GD-3060AHD supports servo automatic Z-axis control
- Stable feeding helps improve surface quality and machining consistency
- Helps reduce manual operation during repeated grinding tasks
- Suitable for mold plates, precision blocks, fixtures, and machine components
- Flexible configuration for mold workshops and precision machining factories
- Suitable for tool room grinding, batch production, and industrial surface finishing
Product Images
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GD-3060AHR/AHD |
| Table size | 600×300mm |
| X axis travel | 720mm |
| Y axis travel | 360mm |
| Max center of wheel to table | 550mm |
| The maximum load | 600kg |
| Table T-slot | 14×1 (mm×N) |
| Table speed | 5~30m/min |
| Y axis hand wheel feed per grid | 0.02/5mm |
| Y axis automatic feed | 0.1~8mm |
| Y axis moving speed | 990/1190mm/min |
| Z axis moving speed | 230mm/min |
| Z axis hand wheel feed | 0.005/1mm |
| Wheel size | 350×40×127mm |
| Wheel speed | 1450/1740rpm |
| Spindle motor | 5×4 HP |
| Hydraulic motor | 2×6 HP |
| The Y axis motor | 80W |
| The Z axis motor | 150/750W |
| Cooling motor | 90W |
| Weight | ≈2100kg |
| Machine overall dimensions | 2640×2080×1820mm |
Frequently Asked Questions
What is the GD-3060 Series Precision Surface Grinder used for?
It is mainly used for flat surface grinding, mold grinding, metal part finishing, fixture grinding, tool room grinding, and precision surface machining.
Which axes support automatic feeding?
The X axis and Y axis support automatic feeding, helping improve grinding efficiency and reduce manual operation.
What Z-axis control options are available?
The Z axis can be configured with electric control or servo automatic control according to production requirements.
What is the difference between GD-3060AHR and GD-3060AHD?
The GD-3060AHR uses electric Z-axis control, while the GD-3060AHD uses servo automatic Z-axis control for higher automation and better repeatability.
Which model is better for higher automation?
The GD-3060AHD is more suitable for higher automation requirements because it uses servo automatic Z-axis control.
What workpieces can this surface grinder process?
It can process mold plates, precision blocks, fixtures, machine parts, hardware parts, automotive components, and other flat metal workpieces.
What information is needed for quotation?
Please provide workpiece material, size, grinding accuracy, surface finish requirement, production quantity, preferred Z-axis control type, and optional configuration requirements.
