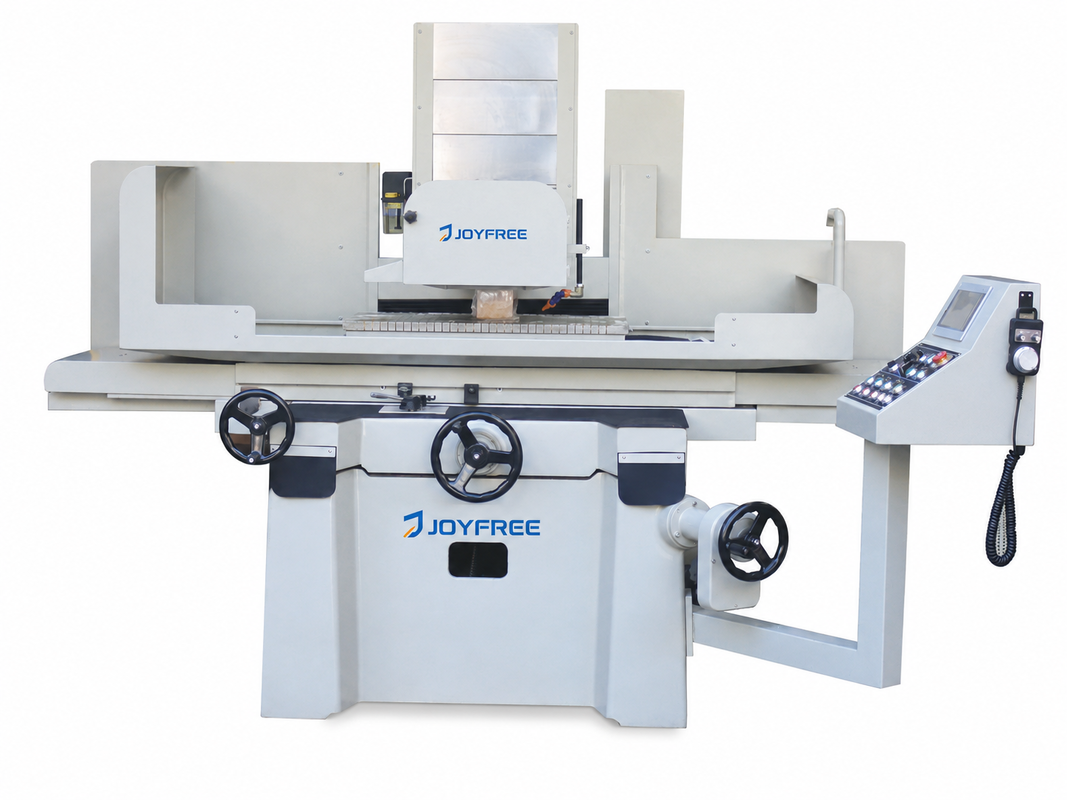

GD-4080 Series Precision Surface Grinder with X/Y Automatic Feed and Optional Z-Axis Control
Product Overview
The GD-4080 Series Precision Surface Grinder is a high-performance surface grinding machine designed for flat surface grinding, precision mold grinding, metal part finishing, fixture grinding, tool room grinding, and industrial surface machining. With automatic feeding on the X and Y axes and optional Z-axis control configurations, this machine provides stable grinding accuracy, efficient operation, and consistent surface finishing quality for medium and large precision workpieces.
The X-axis and Y-axis automatic feeding system helps improve grinding efficiency and reduce manual operation during repeated grinding tasks. It supports smooth table movement, stable feed control, and consistent machining results, making the machine suitable for mold workshops, precision machining factories, hardware processing plants, tool rooms, and batch production applications.
The Z axis provides different control options according to production requirements. The GD-4080AHR model adopts electric Z-axis control, improving operation convenience and feed efficiency. The GD-4080AHD model supports servo automatic Z-axis control, providing higher automation, more accurate feed control, and better repeatability for precision surface grinding.
Key Features
- GD-4080 series precision surface grinder for flat surface finishing
- X-axis and Y-axis automatic feeding improves grinding efficiency
- Optional Z-axis control meets different production requirements
- GD-4080AHR supports electric Z-axis control
- GD-4080AHD supports servo automatic Z-axis control
- Stable feeding helps improve surface quality and machining consistency
- Helps reduce manual operation during repeated grinding tasks
- Suitable for mold plates, precision blocks, fixtures, and machine components
- Flexible configuration for mold workshops and precision machining factories
- Suitable for tool room grinding, batch production, and industrial surface finishing
- Designed for medium and large precision surface grinding applications
Product Images
Technical Specifications
| Item | Parameter |
|---|---|
| Model | GD-4080AHR/AHD |
| Table size | 800×400mm |
| X axis travel | 950mm |
| Y axis travel | 460mm |
| Max center of wheel to table | 515mm |
| The maximum load | 600kg |
| Table T-slot | 14×3 (mm×N) |
| Table speed | 5~25m/min |
| Y axis hand wheel feed per grid | 0.02/5mm |
| Y axis automatic feed | 0.1~8mm |
| Y axis moving speed | 990/1190mm/min |
| Z axis moving speed | 230mm/min |
| Z axis hand wheel feed | 0.005/1mm |
| Wheel size | 400×20-50×127mm |
| Wheel speed | 1450/1740rpm |
| Spindle motor | 10×4 HP |
| Hydraulic motor | 3×6 HP |
| The Y axis motor | 80W |
| The Z axis motor | 150/750W |
| Cooling motor | 90W |
| Weight | ≈2800kg |
| Machine overall dimensions | 2530×2300×1900mm |
Frequently Asked Questions
What is the GD-4080 Series Precision Surface Grinder used for?
It is mainly used for flat surface grinding, mold grinding, metal part finishing, fixture grinding, tool room grinding, and precision surface machining.
Which axes support automatic feeding?
The X axis and Y axis support automatic feeding, helping improve grinding efficiency and reduce manual operation.
What Z-axis control options are available?
The Z axis can be configured with electric control or servo automatic control according to production requirements.
What is the difference between GD-4080AHR and GD-4080AHD?
The GD-4080AHR uses electric Z-axis control, while the GD-4080AHD uses servo automatic Z-axis control for higher automation and better repeatability.
Which model is better for higher automation?
The GD-4080AHD is more suitable for higher automation requirements because it uses servo automatic Z-axis control.
What workpieces can this surface grinder process?
It can process mold plates, precision blocks, fixtures, machine parts, hardware parts, automotive components, and other flat metal workpieces.
What information is needed for quotation?
Please provide workpiece material, size, grinding accuracy, surface finish requirement, production quantity, preferred Z-axis control type, and optional configuration requirements.
