HNC-20S Dual-Spindle Multi-Axis CNC Lathe with Dual-Channel System and Truss Loading Manipulator
HNC-20S Dual-Spindle Multi-Axis CNC Lathe with Dual-Channel System and Truss Loading Manipulator
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

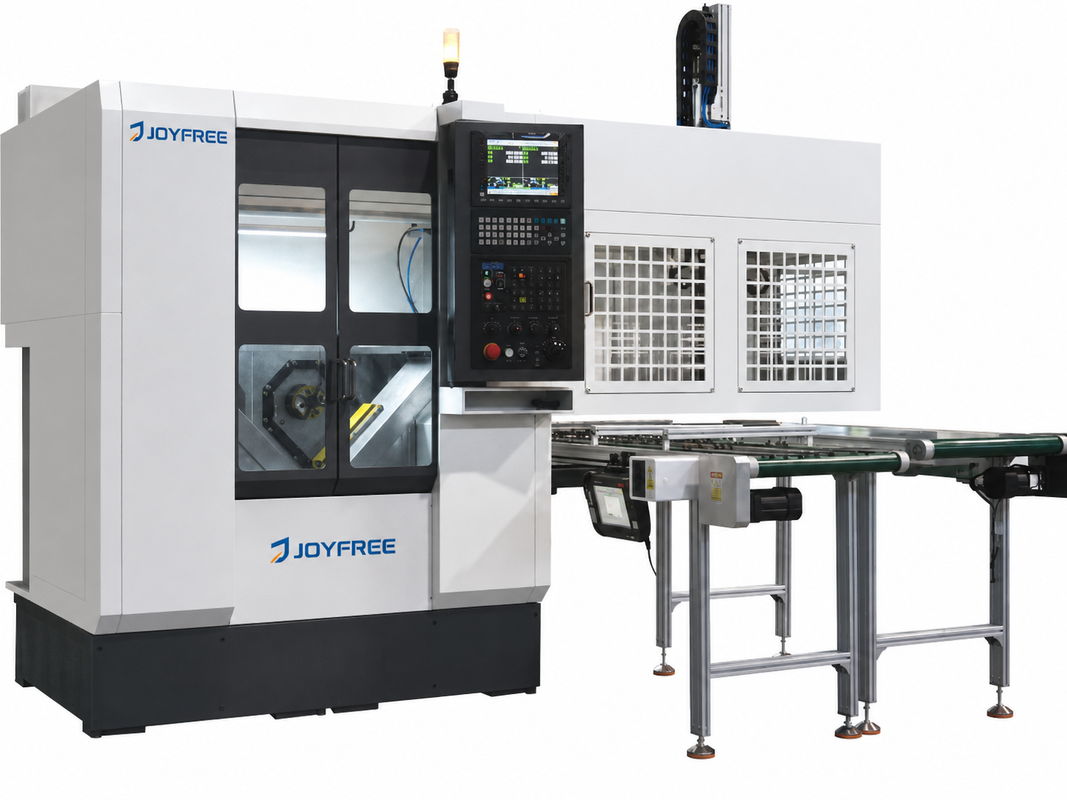

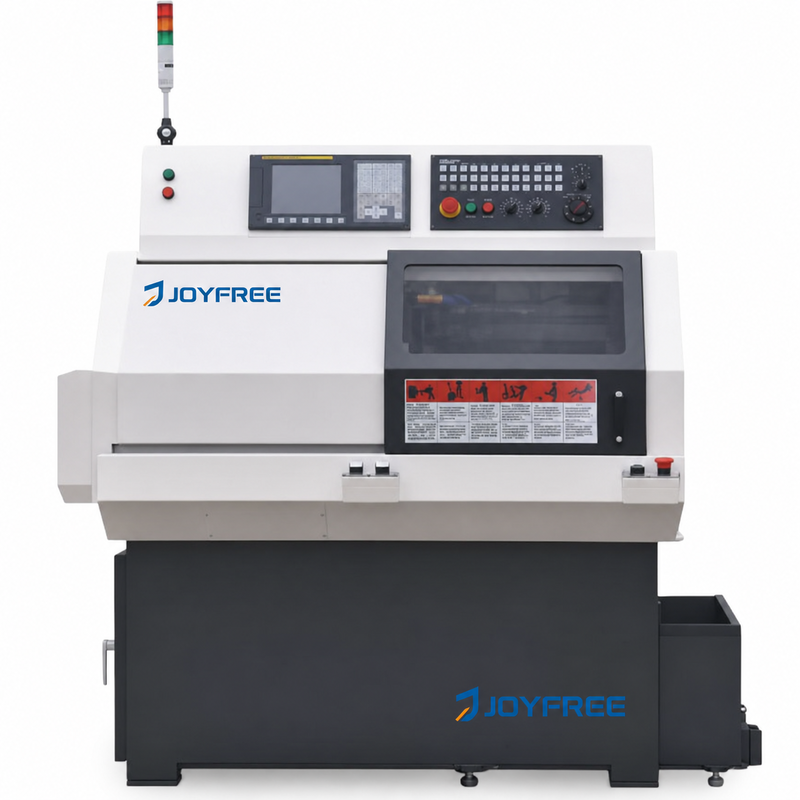

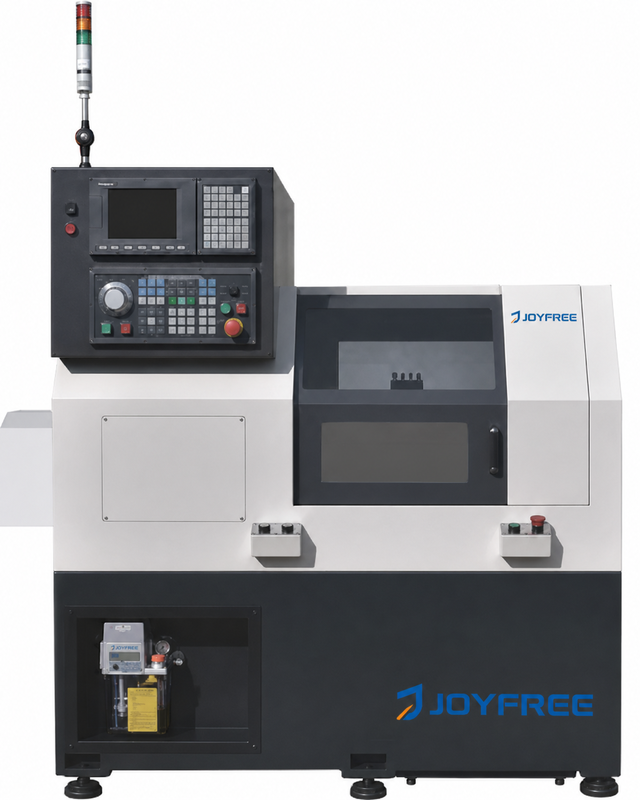

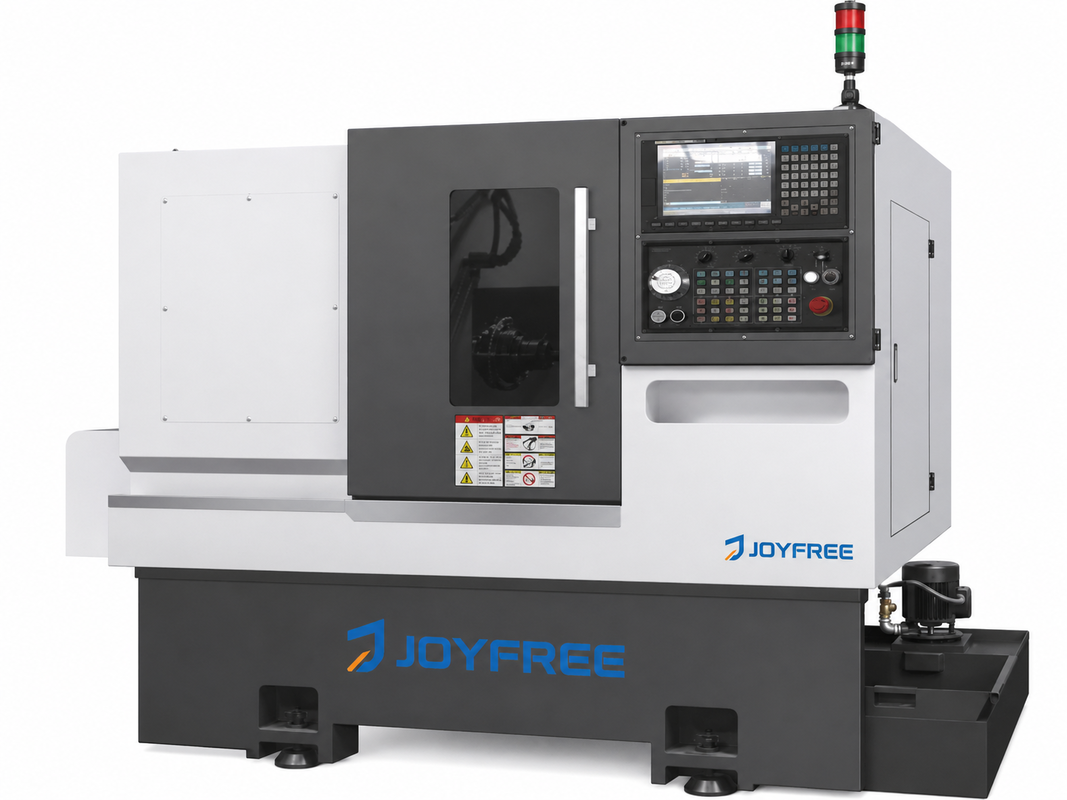

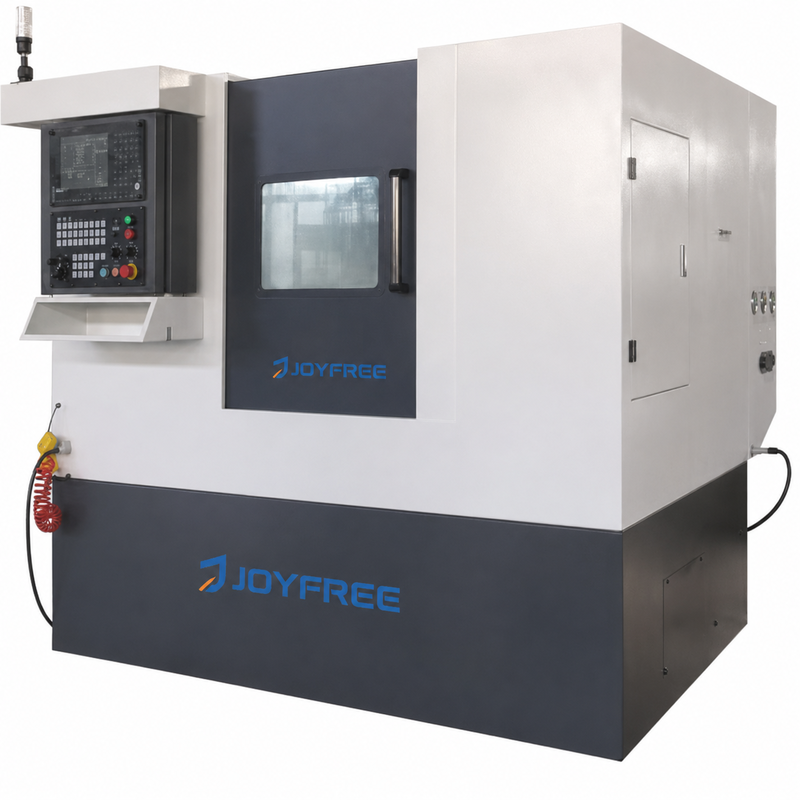

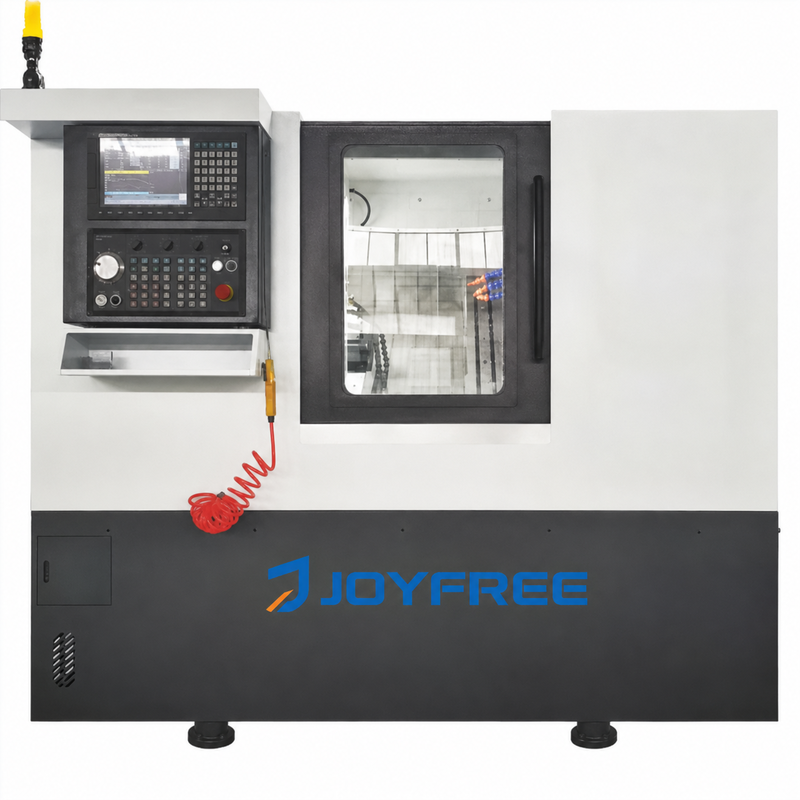

HNC-20S Dual-Spindle Multi-Axis CNC Lathe with Dual-Channel System and Truss Loading Manipulator
The HNC-20S Dual-Spindle Multi-Axis CNC Lathe is a high-efficiency CNC turning solution designed for precision turning, automatic production, small part machining, shaft part machining, disc part machining, and batch manufacturing. With a dual-spindle, dual-row gang tool, and dual-channel control system, one machine can function like two independent units, helping double production capacity and achieve efficient manufacturing.
Compared with two independent automatic lathes, the HNC-20S helps reduce equipment cost by about 20%, reduce electricity consumption by about 30%, and reduce floor space by about 33%. This makes it a practical solution for manufacturers that require higher output, lower operating cost, and more compact production layout.
The machine adopts a symmetrical structure, active cooling system, and smooth chip removal design to control thermal deformation and maintain micrometer-level thermal stability. This helps improve machining accuracy and long-term production consistency.
Key Features
- HNC-20S dual-spindle multi-axis CNC lathe for high-efficiency turning
- Dual-spindle, dual-row gang tool, and dual-channel system
- One machine can work like two independent automatic lathes
- Helps double production capacity and improve production efficiency
- Compared with two independent automatic lathes, equipment cost can be reduced by about 20%
- Electricity consumption can be reduced by about 30%
- Floor space can be reduced by about 33%
- Symmetrical structure and active cooling help reduce thermal deformation
- Smooth chip removal design supports stable long-term machining
- Precision electric spindle improves response speed and positioning accuracy
- Dovetail cutting table helps reduce idle time
- Special bed design reduces intermittent cutting vibration
- Helps improve roundness stability, surface roughness consistency, and tool life
- Optional truss loading manipulator supports automated production
Product Images
Technical Specifications
Spindle Specifications
| Item | First Spindle | Second Spindle |
|---|---|---|
| Max. turning diameter | Φ100 mm | Φ100 mm |
| Max. bar through-hole | Φ20 mm | Φ20 mm |
| Max. turning length | 100 mm | 100 mm |
| Spindle bore | Φ22 mm | Φ22 mm |
| Speed range | 50-600 r/min | 50-6000 r/min |
Note: The first spindle speed in the source text appears as 50-600 r/min. Please confirm whether it should be 50-6000 r/min.
Feed, Motor and Tooling
| Item | First Spindle Side | Second Spindle Side |
|---|---|---|
| X1/Z1 axis travel | 200/230 mm | 200/230 mm |
| Rapid traverse | 18 m/min | 18 m/min |
| Electric spindle power | 3.25 kW | 3.25 kW |
| X1/Z1 axis motor power | 1.0/1.0 kW | 1.0/1.0 kW |
| Tool post type | Dual-row gang tool | Dual-row gang tool |
| Tool shank specification | 16×16 mm | 16×16 mm |
Main Configuration
| Item | Parameter |
|---|---|
| Model | HNC-20S |
| Product Series | Multi-Axis Lathe Series |
| Control system channel | SYNTEC dual-channel |
| Main structure type | Dual spindle + dual-row gang tool |
| Machine weight | ≈2400 kg |
| Machine dimensions, L×W×H | 1450×1660×1800 mm |
| Machine dimensions with automation, L×W×H | 2770×2300×2400 mm |
Truss Loading Manipulator
| Item | Parameter |
|---|---|
| Workpiece weight | 0.25 kg × 2 |
| Max. diameter | Φ82 mm for disc parts / Φ40 mm for shaft parts |
| Max. length | 15 mm for disc parts / 45 mm for shaft parts |
| Servo type | Full servo |
| Number of axes | 2 axes |
Frequently Asked Questions
1. What is the HNC-20S Dual-Spindle CNC Lathe used for?
It is mainly used for precision turning, small part machining, shaft part machining, disc part machining, and automated batch production.
2. What is the main advantage of the dual-spindle design?
The dual-spindle design allows one machine to work like two independent units, helping improve production capacity and machining efficiency.
3. What control system does the machine use?
The machine uses a SYNTEC dual-channel control system.
4. What is the maximum turning diameter?
The maximum turning diameter is Φ100 mm for both the first spindle and the second spindle.
5. What is the maximum bar through-hole?
The maximum bar through-hole is Φ20 mm.
6. Can the machine be equipped with automatic loading and unloading?
Yes. It can be equipped with a truss loading manipulator for automated production.
7. What information is needed for quotation?
Please provide workpiece drawing, material, diameter, length, tolerance requirement, surface roughness requirement, production quantity, automation requirement, and preferred configuration.
Contact us for detailed specifications and pricing information.
