HNC-30 Series High-Precision CNC Lathe with Gang Tool, Power Tooling and Y-Axis Option
Product Overview
The HNC-30 Series High-Precision CNC Lathe is a compact, rigid, and efficient CNC turning machine designed for small workpiece machining, precision turning, bar machining, shaft part machining, hardware component processing, and high-efficiency batch production. This series includes HNC-30, HNC-30L, and HNC-30Y, providing flexible configurations for standard turning, extended Z-axis machining, and Y-axis compound machining.
The main components of the HNC-30 series are sourced from Germany, Japan, and Taiwan, helping ensure stable performance, reliable quality, and long-term machining accuracy. The machine adopts a high-strength, low-stress cast iron bed, which can effectively absorb cutting vibration and maintain stable machining precision.
The machine is equipped with high-precision ball screws and linear bearings. The repetitive positioning accuracy can reach 0.001 mm, supporting precise and stable machining of small parts.
After optimization of servo acceleration and deceleration control, the HNC-30 series offers accurate positioning, fast feeding, and high production efficiency. The structure of large-diameter lead screws, wide guide rails, and large-span sliders further enhances machine rigidity.
Key Features
- HNC-30 series high-precision CNC lathe for small workpiece machining
- Model options include HNC-30, HNC-30L, and HNC-30Y
- Compact structure with high rigidity and high efficiency
- Main components sourced from Germany, Japan, and Taiwan
- High-strength low-stress cast iron bed absorbs cutting vibration
- High-precision ball screw and linear bearing structure
- Repetitive positioning accuracy can reach 0.001 mm
- Optimized servo acceleration and deceleration improve positioning accuracy
- Large-diameter lead screw, wide guide rail, and large-span slider enhance rigidity
- Multi-curvature spindle sealing structure improves waterproof performance
- Automatic lubrication system supports reliable long-term maintenance
- HNC-30L provides longer Z-axis travel for extended machining needs
- HNC-30Y supports Y-axis travel and radial power tool machining
- Suitable for turning, drilling, milling, and small part compound machining

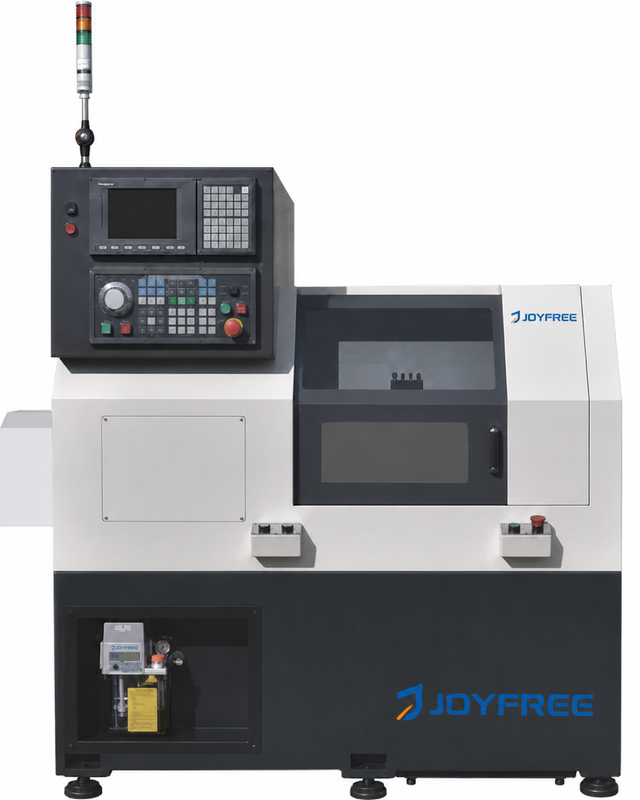

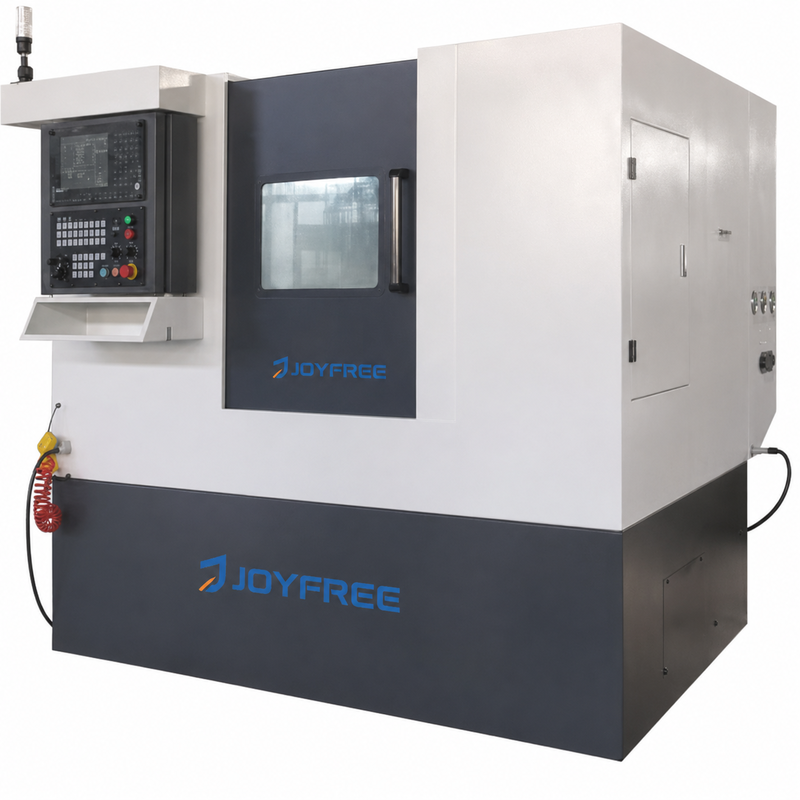

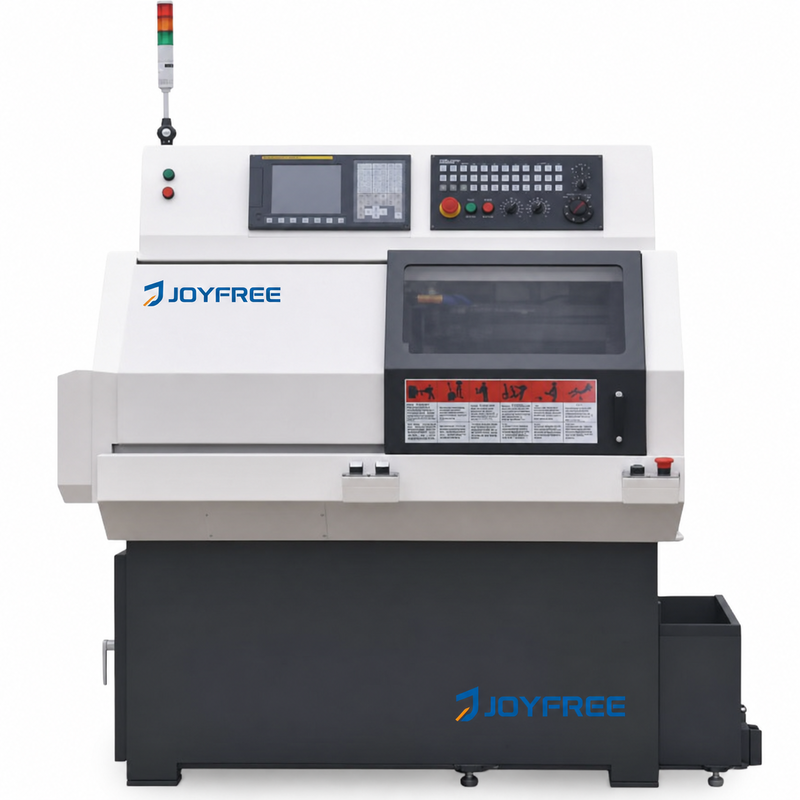

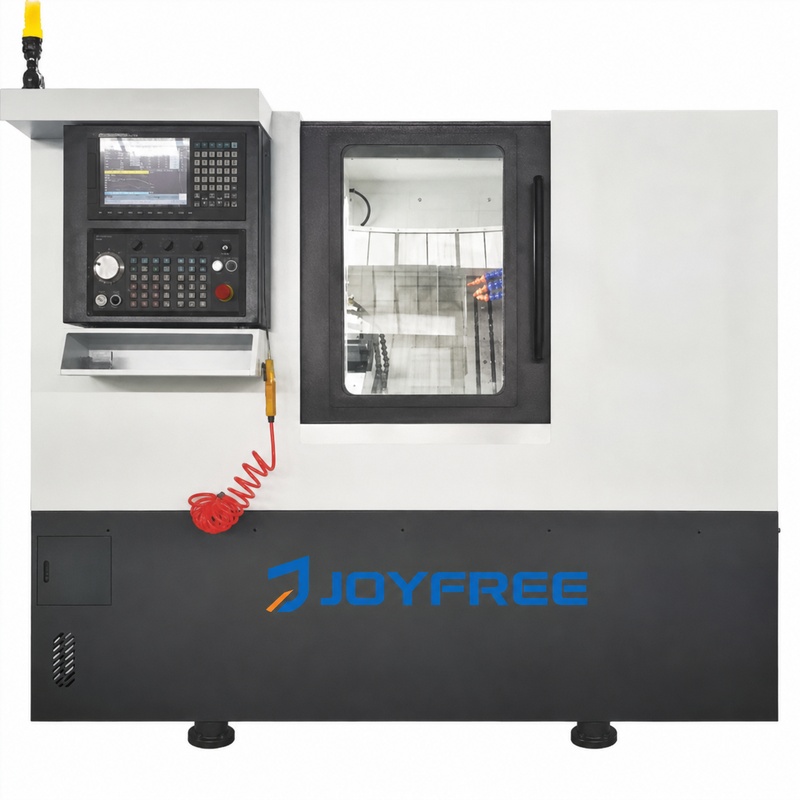

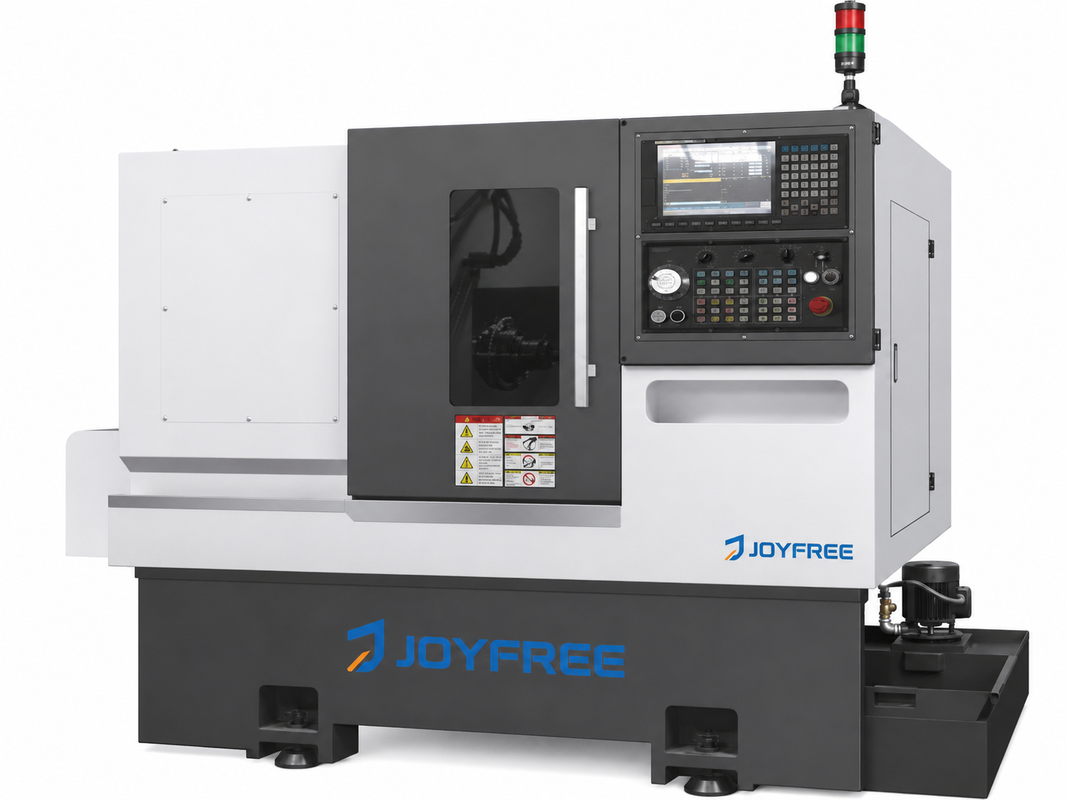

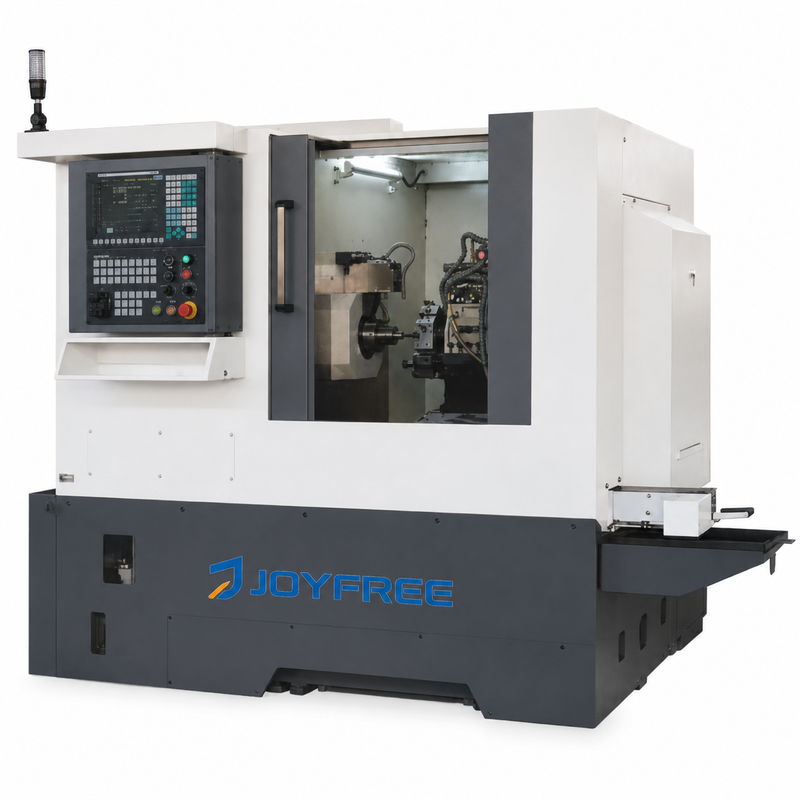

Product Images
Technical Specifications
Capacity
| Item | HNC-30 | HNC-30L | HNC-30Y |
|---|---|---|---|
| Swing | Φ240 mm | Φ240 mm | Φ240 mm |
| Swing over cross slide | Φ70 mm | Φ70 mm | Φ70 mm |
| Max. turning diameter | Φ100 mm | Φ100 mm | Φ100 mm |
| Max. turning length | 100 mm | 100 mm | 100 mm |
| Max. bar through-hole | Φ30 mm | Φ30 mm | Φ30 mm |
Spindle
| Item | HNC-30 | HNC-30L | HNC-30Y |
|---|---|---|---|
| Workpiece clamping method | After-pull type clamping | After-pull type clamping | After-pull type clamping |
| Spindle speed range | 50-6000 rpm | 50-6000 rpm | 50-8000 rpm |
| Spindle end specification | A2-3 | A2-3 | A2-3 |
Note: The original text for HNC-30 and HNC-30L spindle speed appears as 50 -600 rpm, but based on the series context it is likely 50 -6000 rpm. Please confirm before final publishing.
Rapid Traverse and Axis Stroke
| Item | HNC-30 | HNC-30L | HNC-30Y |
|---|---|---|---|
| X-axis rapid traverse | 18 m/min | 18 m/min | 18 m/min |
| Y-axis rapid traverse | -- | -- | 12 m/min |
| Z-axis rapid traverse | 18 m/min | 18 m/min | 18 m/min |
| X-axis travel | 250 mm | 250 mm | 250 mm |
| Y-axis travel | -- | -- | 76 mm |
| Z-axis travel | 185 mm | 305 mm | 185 mm |
Power Tooling
| Item | HNC-30 | HNC-30L | HNC-30Y |
|---|---|---|---|
| Configuration type | Axial direction | Axial / radial direction | Radial direction |
| Number of configurations | 1 tool | 1 axial / 1 radial tool | 2 radial tools |
| Drive power | 0.75-1.0 kW | 0.75-1.0 kW | 0.75-1.0 kW |
| Clamping specification | ER20M | ER20M | ER20M |
| Maximum speed | Up to 5000 rpm | Up to 5000 rpm | Up to 5000 rpm |
Motor Power and Other Configuration
| Item | HNC-30 | HNC-30L | HNC-30Y |
|---|---|---|---|
| Spindle drive motor | 2.2-3.7 kW | 2.2-3.7 kW | 2.2-3.7 kW |
| Feed motor | 0.75-1.0 kW | 0.75-1.0 kW | 0.75-1.0 kW |
| Tool post type | Dovetail gang tool | Dovetail gang tool | Dovetail gang tool |
| Tool shank specification | 16×16 mm | 16×16 mm | 16×16 mm |
| Max. number of turning tools | 7 tools | 7 tools | 7 tools |
| Cooling motor | 0.09 kW | 0.09 kW | 0.09 kW |
| Required electric power | 6 kVA | 8 kVA | 6 kVA |
| Machine dimensions, L×W×H | 1580×1250×1590 mm | 1580×1250×1580 mm | 1580×1250×1590 mm |
| Height from floor to spindle center | 960 mm | 960 mm | 960 mm |
| Machine weight | ≈1200 kg | ≈1200 kg | ≈1200 kg |
Frequently Asked Questions
1. What is the HNC-30 Series CNC Lathe used for?
It is mainly used for high-precision and high-efficiency machining of small workpieces, bar parts, small shafts, hardware components, and precision metal parts.
2. What models are included in the HNC-30 series?
The series includes HNC-30, HNC-30L, and HNC-30Y.
3. What is the difference between HNC-30, HNC-30L, and HNC-30Y?
The HNC-30 is the standard model, the HNC-30L provides a longer Z-axis travel, and the HNC-30Y adds a Y-axis and radial power tooling configuration for more flexible compound machining.
4. What is the maximum turning diameter?
The maximum turning diameter is Φ 100 mm.
5. What is the maximum bar through-hole?
The maximum bar through-hole is Φ 30 mm.
6. What is the repetitive positioning accuracy?
The repetitive positioning accuracy can reach 0.001 mm.
7. What information is needed for quotation?
Please provide workpiece drawing, material, diameter, length, tolerance requirement, surface roughness requirement, machining process, production quantity, and preferred model configuration.
