Portable Luggage-Type Pulse Fiber Laser Cleaning Machine for Rust, Paint and Metal Surface Cleaning
Portable Luggage-Type Pulse Fiber Laser Cleaning Machine for Rust, Paint and Metal Surface Cleaning
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Portable Luggage-Type Pulse Fiber Laser Cleaning Machine
The Portable Luggage-Type Pulse Fiber Laser Cleaning Machine is a flexible and mobile laser cleaning solution designed for rust removal, paint stripping, oxide layer removal, oil stain cleaning, weld seam cleaning, mold cleaning, and metal surface restoration.
Product Overview
Equipped with a pulsed fiber laser and a self-developed intelligent control system, this machine provides precise cleaning performance, stable laser output, and convenient operation for industrial surface treatment applications.

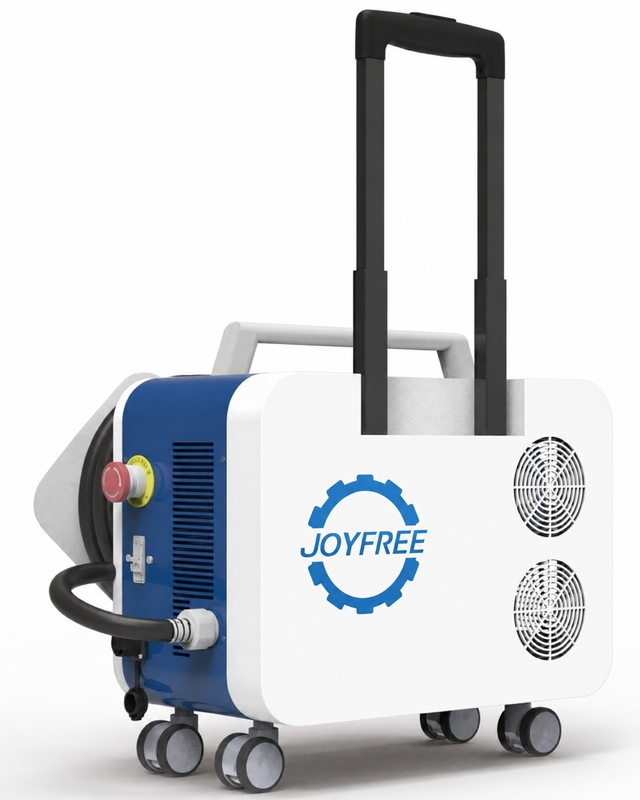

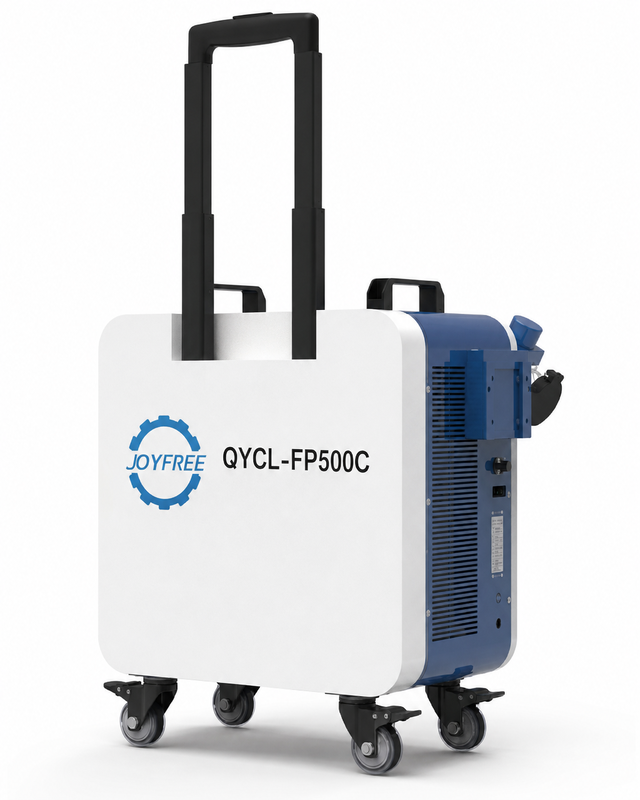

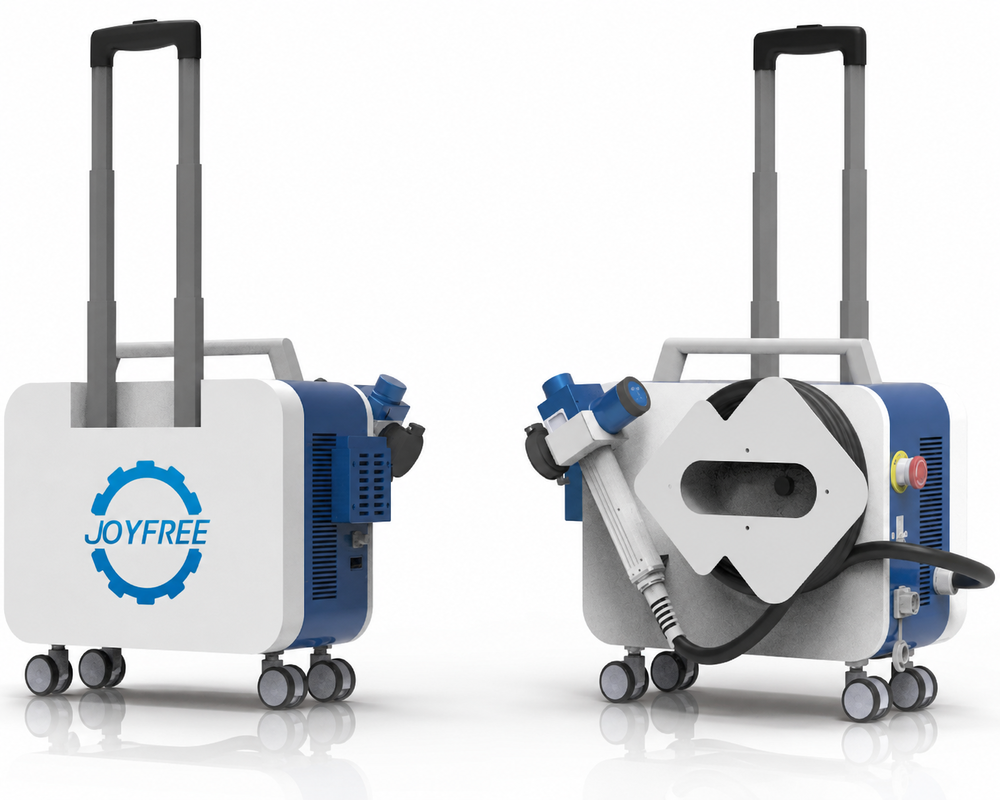

The machine adopts a luggage-style mechanical structure with a pull-bar design, making it lighter, more flexible, and easier to move compared with traditional large cleaning equipment. With 360° silent universal wheels, the machine can rotate smoothly without dead angles, allowing operators to move and fix the equipment conveniently in workshops, maintenance sites, factories, and outdoor working environments.
This luggage-type laser cleaning machine supports independently controlled laser pulse frequency and pulse width. By adjusting laser parameters, the machine can achieve stable peak power output, making it suitable for a wider range of cleaning scenarios.
Key Features
- Portable luggage-type laser cleaning machine for flexible movement
- Pulsed fiber laser for rust, paint, oil and oxide layer removal
- Self-developed intelligent control system for stable operation
- Independent pulse frequency and pulse width control
- Stable peak power output for wider cleaning applications
- Compatible with IPG, Raycus, MAX, JPT and other laser sources
- Pull-bar box structure makes movement easier
- 360° silent universal wheels support smooth rotation and fixation
- 2D galvanometer supports customized graphic cleaning
- Air curtain dustproof structure protects core optical components
- Safety lock and tilt-sensing system help prevent accidental laser emission
- Red light assisted focusing supports precise focal distance positioning
- Multi-language touch screen with 8 standard cleaning graphics
- Supports industrial bus communication protocols and laser alarm function
Applications
- Rust removal
- Paint stripping
- Metal surface cleaning
- Oil stain removal
- Oxide layer removal
- Weld seam cleaning
- Mold cleaning
- Automotive maintenance
- Ship repair
- Rail transit maintenance
- Steel structure cleaning
- Pipeline cleaning
- Machinery refurbishment
- Factory workshop cleaning
- Outdoor industrial maintenance
Technical Parameters
| Model | QYCL-FP100 | QYCL-FP200 | QYCL-FP300 | QYCL-FP500 |
|---|---|---|---|---|
| Laser power(W) | 100 | 200 | 300 | 500 |
| Single pulse energy(mJ) | 1.8 | 1.5/2 | ||
| Rated power(kW) | 0.55 | 0.8 | 1.1 | 2.5 |
| Rated current (A) | 2.5 | 4 | 6 | 11.4 |
| Power adjustment range(%) | 10～100 | |||
| Scanning width (mm) | 0～100 | |||
| Focal distance(mm) | 100/160/254/330 | 100/160/254/330/420 | ||
| Cooling method | Air cooled | |||
| Center wavelength (nm) | 1060～1070 | |||
| Output fiber type | QCS | QBH | ||
| Fiber cable length (m) | 5 | |||
| Working model | Pulse | |||
| Supply voltage(V) | 220 | |||
| Weight of machine (kg) | 18±1 | 19±2 | 27±2 | |
| Dimension of machine (mm) | 500*438*302 | 517*382*559 | ||
Frequently Asked Questions
1. What is the Luggage-Type Laser Cleaning Machine used for?
The Luggage-Type Laser Cleaning Machine is mainly used for rust removal, paint stripping, oil stain cleaning, oxide layer removal, weld seam cleaning, mold cleaning, and metal surface restoration.
2. What are the advantages of the luggage structure design?
The luggage-style pull-bar design is easy to move and flexible to operate. With 360° silent universal wheels, the machine can be moved and fixed conveniently in workshops, factories, outdoor sites, and maintenance environments.
3. What laser sources can this machine use?
The machine can be equipped with IPG, Raycus, MAX, JPT and other laser sources. The jumper design supports switching between multiple laser control brands, improving system compatibility.
4. What is the benefit of independent pulse control?
The laser pulse frequency and pulse width can be independently controlled. By adjusting laser parameters, the machine can achieve stable peak power output and adapt to different cleaning materials, pollution levels, and surface conditions.
5. What materials can this machine clean?
It can clean carbon steel, stainless steel, aluminum alloy, copper, iron, mold steel, and other industrial metal materials. The actual cleaning effect depends on laser power, surface condition, cleaning speed, and parameter settings.
6. Is the machine safe to operate?
Yes. The machine is designed with a safety lock, tilt-sensing system, air curtain dustproof structure, and focus laser assistance. These functions help improve operation safety and protect key optical components.
7. Can the cleaning graphics and parameters be customized?
Yes. The machine includes 8 standard cleaning graphics and supports customized graphic cleaning. It also supports parameter power-off storage and process parameter saving, making repeated cleaning tasks more efficient.
