Product Description

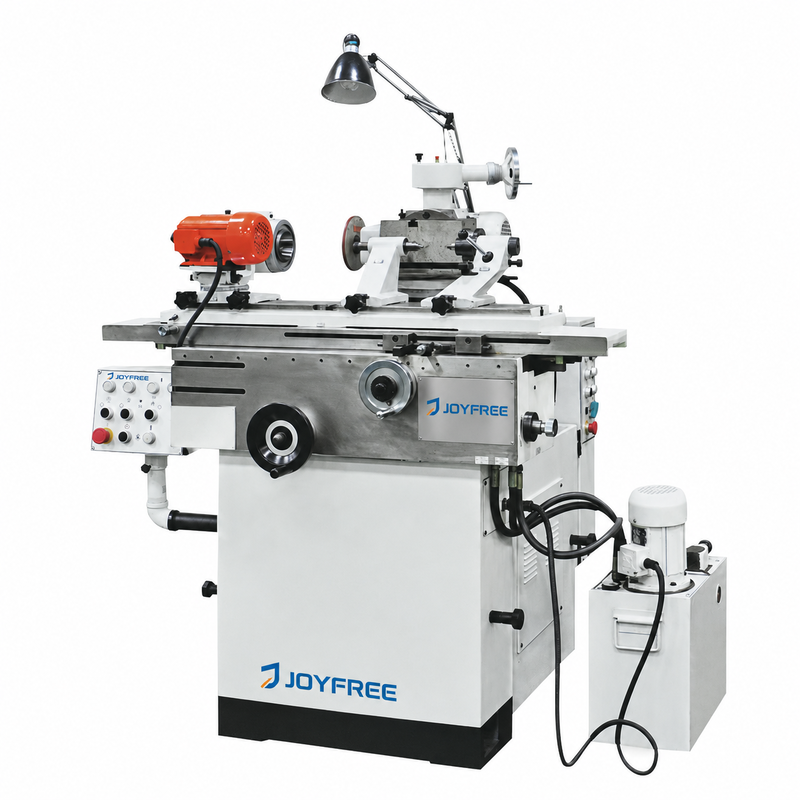

MQ6025YA Hydraulic Universal Tool Grinder for HSS and Tungsten Carbide Cutting Tools
The MQ6025YA Hydraulic Universal Tool Grinder is a versatile and precise grinding machine designed for sharpening and reconditioning cutting tools made of HSS, tungsten carbide, and other tool materials. It is suitable for cylindrical grinding, surface groove grinding, forming surface grinding, cutter grinding, drill bit grinding, reamer grinding, and various precision tool maintenance applications.
With hydraulic workbench movement and flexible grinding head adjustment, this machine provides stable operation, accurate positioning, and efficient grinding performance. It is suitable for tool rooms, CNC workshops, mold factories, machinery repair shops, hardware processing plants, and precision machining workshops.
With additional attachments, the MQ6025YA can grind various cutting tools, including gears, worm wheel hobs, forming cutters, ball end mills, twist drill bits, taper reamers, and other complex tools. This makes it a practical solution for workshops requiring wide tool compatibility and flexible grinding capability.
Key Features
- MQ6025YA hydraulic universal tool grinder for precision tool grinding
- Suitable for HSS, tungsten carbide, and other tool materials
- Supports cylindrical grinding, surface groove grinding, and forming surface grinding
- Hydraulic workbench stroke reaches 400 mm
- Maximum grinding diameter: 250 mm
- Maximum grindable outer circle length: 270 mm
- Grinding wheel stand supports 360° horizontal rotation
- Wheel stand inclination angle: ±15°
- Wheel rotate speed: 4000 rpm
- Additional attachments allow grinding of gears, worm wheel hobs, forming cutters, and ball end mills
- Suitable for twist drill bits, taper reamers, and other cutting tools
- Suitable for tool rooms, CNC workshops, mold factories, and repair shops
Product Images

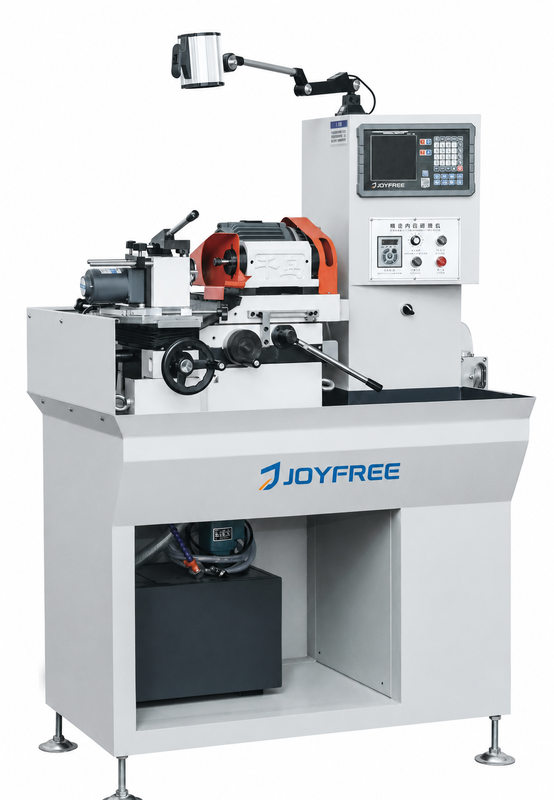

Universal Cylindrical Grinding Machine front view

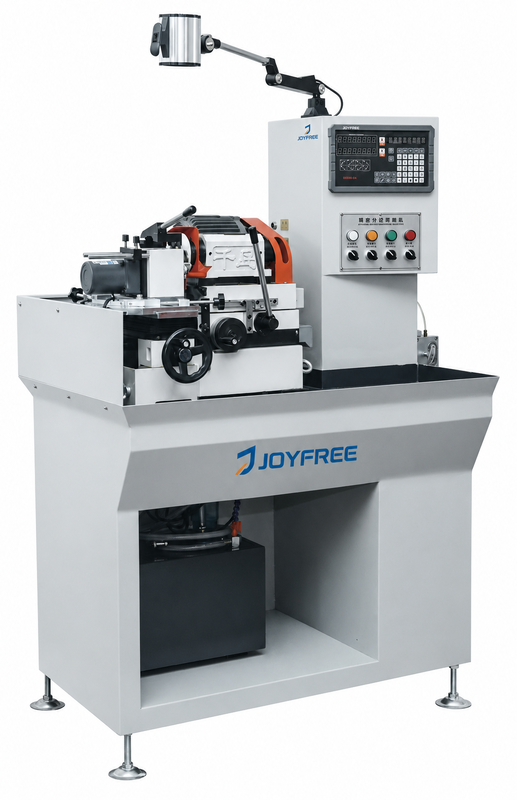

Universal Cylindrical Grinding Machine side view

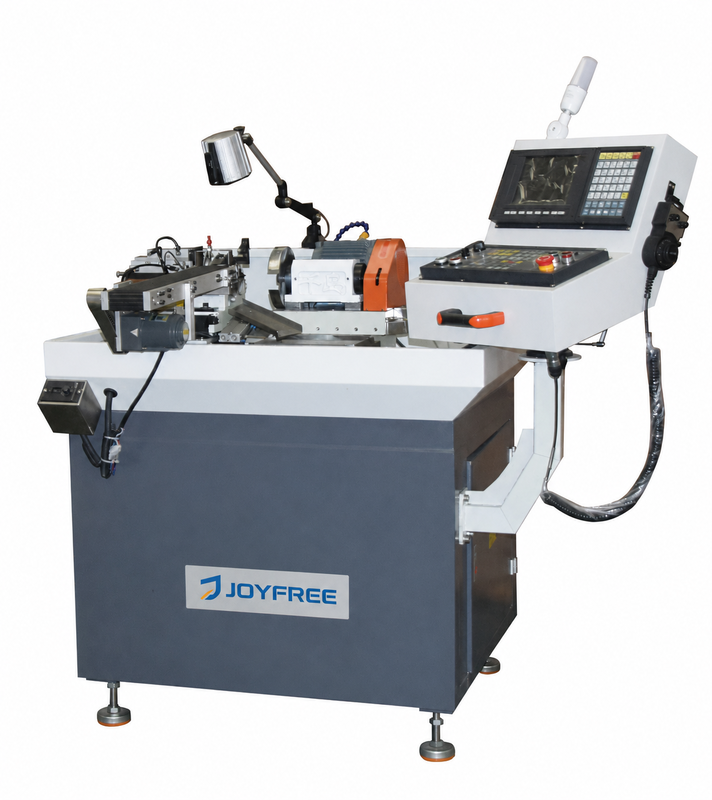

QD580 Five-Axis CNC Tool Grinder front view
QD580 Five-Axis CNC Tool Grinder side view
QD580 Five-Axis CNC Tool Grinder control panel
Technical Specifications
| Item | Parameter |
|---|---|
| Model | MQ6025YA |
| Head stock and tail stock top maximum distance | 545 mm |
| Max. distance of the longitudinal tail frame top | 650 mm |
| Max grinding diameter | 250 mm |
| Apex center height | 130 mm |
| Maximum length of grindable outer circle | 270 mm |
| Manual travel of the table | 400 mm |
| Workbench hydraulic stroke | 400 mm |
| Maximum rotation angle of the table | ±45° |
| Wheel carriage travel stroke, horizontal/vertical | 230/250 mm |
| Wheel stand motorized lifting speed | 290 mm/min |
| Grinding wheel shaft to table distance, max/min | 398/48 mm |
| Horizontal rotation angle of grinding wheel stand | 360° |
| Wheel stand inclination angle | ±15° |
| Wheel rotate speed | 4000 rpm |
| Total machine power | 3.15 kW |
| Machine tool dimensions, L×W×H | 1340×1320×1320 mm |
| Box Dimensions, L×W×H | 1820×1550×1640 mm |
| Gross/Net | 1300/1150 kg |
Frequently Asked Questions
What is the MQ6025YA Hydraulic Universal Tool Grinder used for?
It is mainly used for grinding and sharpening HSS tools, tungsten carbide tools, forming cutters, ball end mills, drill bits, taper reamers, gears, worm wheel hobs, and other cutting tools.
What materials can this machine grind?
It is suitable for tools made of HSS, tungsten carbide, and other tool materials.
Can it perform cylindrical grinding?
Yes. The machine is suitable for cylindrical grinding, surface groove grinding, and forming surface grinding.
What is the maximum grinding diameter?
The maximum grinding diameter is 250 mm.
What is the hydraulic stroke of the workbench?
The workbench hydraulic stroke is 400 mm.
What tools can be ground with additional attachments?
With additional attachments, it can grind gears, worm wheel hobs, forming cutters, ball end mills, twist drill bits, taper reamers, and other complex tools.
What information is needed for quotation?
Please provide the tool type, tool material, workpiece size, grinding requirement, accessory requirement, production quantity, and preferred configuration.
