Product Description
Bicycle Frame Tube Forming, Pressing and Swaging Equipment Series
Product Overview
The Bicycle Frame Tube Forming, Pressing and Swaging Equipment Series is specifically designed for bicycle and e-bike frame tube processing. This comprehensive series covers number rolling, tube swaging, seat tube multi-function processing, hydraulic pressing, dual-head chamfering, and tube end expanding or contracting operations.
This equipment helps improve frame processing efficiency, reduce manual operation requirements, and maintain stable production quality throughout manufacturing processes.
Key Features
- Suitable for bicycle and e-bike frame tube processing
- Covers tube swaging, pressing, chamfering, expanding, contracting, and number rolling
- Includes manual and automatic tube swaging machines
- Seat tube five-function processing machine supports multiple frame tube operations
- Hydraulic pressing machines suitable for heavy-duty frame component processing
- Dual-head chamfering improves tube end processing efficiency
- Practical structure, stable performance, and easy operation
- Suitable for batch production and frame processing workshops
Applications
- Bicycle frame production
- Electric bicycle frame processing
- Tube swaging operations
- Tube end expanding and contracting
- Hydraulic pressing applications
- Seat tube processing
- Dual-head chamfering
- Number rolling operations
- Metal tube forming processes

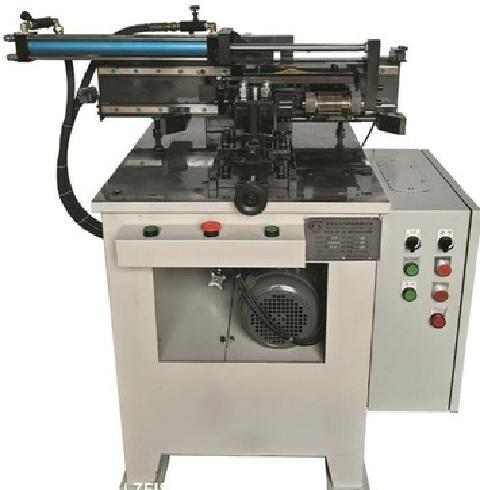

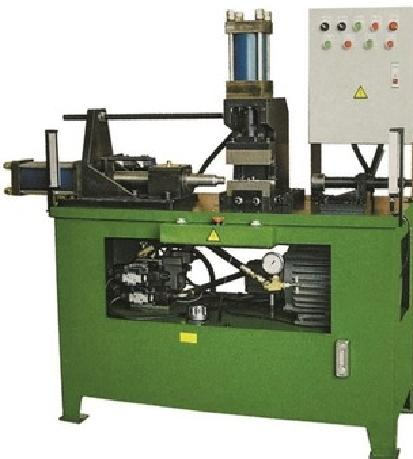

Product Images
Technical Specifications
| Model | Product Name | Power | Capacity | Dimension | Weight |
|---|---|---|---|---|---|
| JEF-2037 | Number Double Rolling Machine | 380V, 3P, 1.5kW | 600-800 PCS/HR | 1500×900×1200 mm | 600 kg |

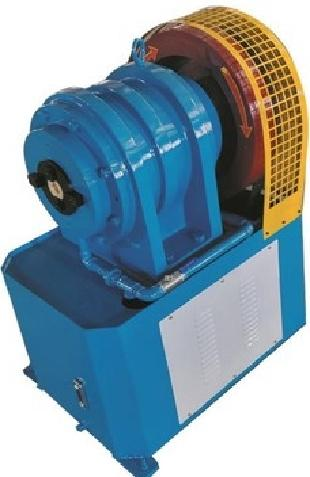

| JEF-2026 | Manual Tube Swaging Machine | 380V, 3P, 3kW | 700-900 PCS/HR | 1000×1000×1200 mm | 1200 kg |

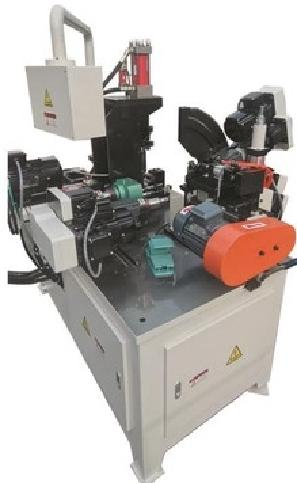

| JEF-2024 | Seat Tube Five-Function Processing Machine | 380V, 3P, 8kW | 200-300 PCS/HR | 1300×1300×1800 mm | 1200 kg |

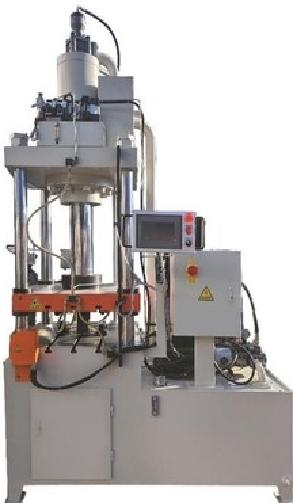

| JEF-2041 | Hydraulic Pressing Machine | 380V, 3P, 8kW | 200-600 PCS/HR | 1200×2000×2300 mm | 3000 kg |

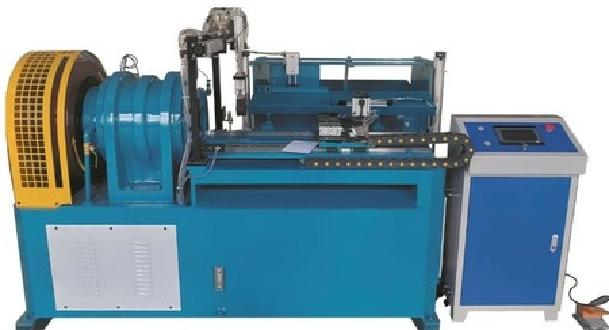

| JEF-2028 | Auto Tube Swaging Machine | 380V, 3P, 3kW | 400-700 PCS/HR | 2200×1200×1500 mm | 2000 kg |
| JEF-2159 | Auto Dual-Head Chamfering Machine | 380V, 3P, 8kW | 300-500 PCS/HR | 1800×1000×1800 mm | 800 kg |

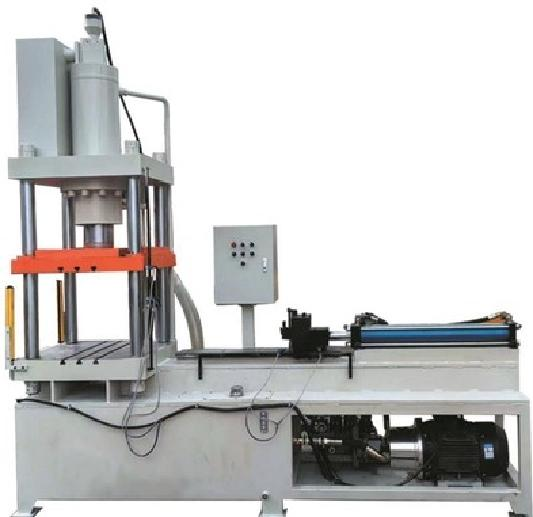

| JEF-2042 | Hydraulic Pressing Machine | 380V, 3P, 9kW | 400-800 PCS/HR | 1200×2800×3000 mm | 3500 kg |
| JEF-2048 | Tube End Expanding / Contracting Machine | 380V, 3P, 5.5kW | 300 PCS/HR | 1900×800×1450 mm | 650 kg |
Frequently Asked Questions
What is this equipment series used for?
It is used for bicycle and e-bike frame tube forming, pressing, swaging, chamfering, expanding, contracting, and number rolling operations.
Which machine is used for automatic tube swaging?
JEF-2028 is the automatic tube swaging machine.
Which machine is used for tube end expanding and contracting?
JEF-2048 is used for tube end expanding and contracting operations.
Which models are hydraulic pressing machines?
JEF-2041 and JEF-2042 are hydraulic pressing machines designed for different capacity requirements.
What information is needed for quotation?
Please provide tube material, tube diameter, tube length, required process, production capacity, voltage requirement, and factory layout details.
For Quotation
Please provide the following information for an accurate quotation:
- Workpiece drawing
- Material specifications
- Gear module and diameter
- Shaft length requirements
- Tolerance requirements
- Surface finish requirements
- Machining process details
- Production quantity
- Automation requirements
