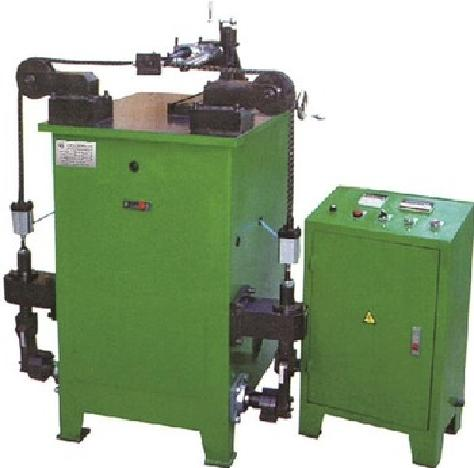

Front Fork Brake Hole Double-Head Drilling/Rear Fork End Doming/Front Fork Alignment /Front Fork Fatigue Testing/Tube End Sealing/Auto Front Fork Crown Welding/Front Fork Stem Slot Milling machine
Front Fork Brake Hole Double-Head Drilling/Rear Fork End Doming/Front Fork Alignment /Front Fork Fatigue Testing/Tube End Sealing/Auto Front Fork Crown Welding/Front Fork Stem Slot Milling machine
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD20000-USD50000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Front Fork Equipment Series for Bicycle Manufacturing
Product Overview
The Front Fork Equipment Series is designed for bicycle and e-bike front fork production, covering brake hole drilling, fork end doming, front fork alignment, fatigue testing, tube end sealing, crown welding, stem slot milling, and rim side lathing. This series helps improve front fork processing accuracy, production efficiency, and batch consistency.
Detailed Description
The Front Fork Equipment Series provides practical and efficient processing solutions for bicycle and electric bicycle front fork manufacturing. It covers key processes such as brake hole drilling, fork end forming, front fork alignment, fatigue testing, tube end sealing, crown welding, and stem slot milling.
These machines are suitable for front fork manufacturers, bicycle factories, electric bicycle production lines, and metal tube processing workshops. With stable structure, easy operation, and efficient processing capacity, the series helps reduce manual work, improve processing accuracy, and support stable batch production.
Different models can be selected according to front fork structure, tube material, production capacity, processing requirements, and workshop layout.
Key Features
- Complete front fork equipment series for bicycle and e-bike production
- Covers drilling, alignment, fatigue testing, welding, sealing, and milling processes
- Helps improve front fork processing accuracy and consistency
- Suitable for front fork brake holes, crown welding, stem slot milling, and fork alignment
- Stable machine structure for batch production
- Practical design, easy operation, and reliable performance
- Suitable for front fork factories, bicycle factories, and e-bike production lines
Applications
- Front fork production
- Bicycle front fork processing
- Electric bicycle front fork manufacturing
- Front fork brake hole drilling
- Front fork alignment
- Front fork fatigue testing
- Front fork crown welding
- Front fork stem slot milling
- Tube end sealing
- Metal tube processing
Product Images
Auto Nipple Tightening Spoke Stabilizing Machine
Auto Wheel Truing Machine
Auto Wheel Lacing and Tightening Machine
Wheel Assembly Equipment Series Overview
Technical Specifications
| Model | Product Name | Power | Capacity | Dimension | Weight |
|---|---|---|---|---|---|
| JEF-3020 | Front Fork Brake Hole Double-Head Drilling Machine | 380V, 3P, 4kW | 300 PCS/HR | 1800*850*1300 mm | 600 kg |
| JEF-2030 | Rear Fork End Doming Machine | 380V, 3P, 8kW | 800 PCS/HR | 1700*700*1400 mm | 1000 kg |
| JEF-3004 | Front Fork Alignment Machine | 380V, 3P, 1.5kW | 120 PCS/HR | 850*550*1300 mm | 260 kg |
| JEF-3042 | Front Fork Fatigue Testing Machine | 380V, 3P, 1.5kW | -- | 1000*900*1300 mm | 260 kg |
| JEF-3021 | Tube End Sealing Machine | 380V, 3P, 2.5kW | 400 PCS/HR | 1150*1000*1400 mm | 600 kg |
| JEF-3007 | Auto Front Fork Crown Welding Machine | 380V, 2P, 0.5kW | 400 PCS/HR | 1350*600*1200 mm | 200 kg |
| JEF-3006 | Front Fork Stem Slot Milling Machine | 220V, 3P, 3kW | 600 PCS/HR | 950*850*1300 mm | 400 kg |
| JEF-5007 | CNC Alloy Rim Side Lathing Machine | 380V, 3P, 8kW | 100-200 PCS/HR | 1700*1300*1600 mm | 1200 kg |
Frequently Asked Questions
What is this equipment series used for?
It is used for bicycle and e-bike front fork processing, including drilling, alignment, fatigue testing, welding, sealing, and milling.
Which machine is used for front fork brake hole drilling?
JEF-3020 is used for front fork brake hole double-head drilling.
Which machine is used for front fork alignment?
JEF-3004 is used for front fork alignment.
Which machine is used for front fork fatigue testing?
JEF-3042 is used for front fork fatigue testing.
Which machine is used for front fork crown welding?
JEF-3007 is used for automatic front fork crown welding.
What information is needed for quotation?
Please provide front fork type, tube material, tube size, required process, production capacity, voltage requirement, and factory layout.
For Quotation
Please provide the following information for an accurate quotation:
- Workpiece drawing
- Material specifications
- Gear module and diameter
- Shaft length requirements
- Tolerance requirements
- Surface finish requirements
- Machining process details
- Production quantity
- Automation requirements
