Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine

Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine

Place of Origin:

China

Brand Name:

Queenly

Certification:

GS, CE, RoHS, ISO 9001

Contact Us
Request A Quote
Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine Down Tube Triple-Head Notching/Top Tube Double-End Milling/Chainstay Milling/Horizontal Seat Tube Reaming/Down Tube Triple-Head Milling/Seatstay Milling/Tube End Chamfering/Number Stamping Machine
Product Details
Application:
Glass
Model NO.:
UT260
Control Method:
Closed-Loop Control
Condition:
New
Processing Precision:
0.01~0.02(mm)
Specification:
2550×3020×3000
Production Capacity:
50sets/Month
Performance Classification:
High-End CNC Machine Tools
Transport Package:
Pallet
Origin:
China
Numerical Control:
CNC/MNC
Trademark:
Queenly
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Leading Time:
35days
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD20000-USD50000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description
Bicycle Frame Notching, Milling and Chamfering Equipment Series

Our comprehensive equipment series is engineered for efficient bicycle and e-bike frame tube processing, delivering superior accuracy, production efficiency, and batch consistency.

Product Overview

This specialized equipment series provides practical solutions for bicycle frame tube end processing, including notching, milling, reaming, chamfering, and number stamping operations. Designed for key production steps in bicycle frame and electric bicycle frame manufacturing.

Key Features
  • Complete frame tube processing equipment series
  • Suitable for bicycle and electric bicycle frame production
  • Covers notching, milling, reaming, chamfering, and number stamping
  • Supports down tube, top tube, chainstay, seatstay, and seat tube processing
  • Enhances processing efficiency and production consistency
  • Multiple capacity options for batch production
  • Robust structure, stable performance, and user-friendly operation
  • Ideal for frame factories and metal tube processing workshops
Applications
  • Bicycle frame production
  • Electric bicycle frame processing
  • Tube notching and milling operations
  • Tube end chamfering
  • Seat tube reaming
  • Chainstay and seatstay milling
  • Down tube and top tube processing
  • Frame number stamping
  • General metal tube processing
Product Images
Auto Nipple Tightening Spoke Stabilizing Machine Auto Wheel Truing Machine Auto Wheel Lacing and Tightening Machine Wheel Assembly Equipment Series Overview
Technical Specifications
Model Product Name Power Capacity Dimension Weight
JEF-2013 Down Tube Triple-Head Notching Machine 380V, 3P, 8kW 600-900 PCS/HR 1600×1200×1600 mm 1600 kg
JEF-2015 Top Tube Double-End Milling Machine 380V, 3P, 5.5kW 80-200 PCS/HR 1600×1200×1600 mm 1200 kg
JEF-2112 Chainstay Milling Machine 380V, 3P, 4kW 300 PCS/HR 1350×850×1200 mm 550 kg
JEF-2113 Horizontal Seat Tube Reaming Machine 380V, 3P, 2.5kW 250 PCS/HR 1800×800×1450 mm 400 kg
JEF-2017 Down Tube Triple-Head Milling Machine 380V, 3P, 8kW 80-200 PCS/HR 1800×1300×1800 mm 1500 kg
JEF-2111 Seatstay Milling Machine 380V, 3P, 4kW 400 PCS/HR 1650×900×1500 mm 650 kg
JEF-2034J Tube End Chamfering Machine 380V, 3P, 1.5kW 600 PCS/HR 600×600×1500 mm 260 kg

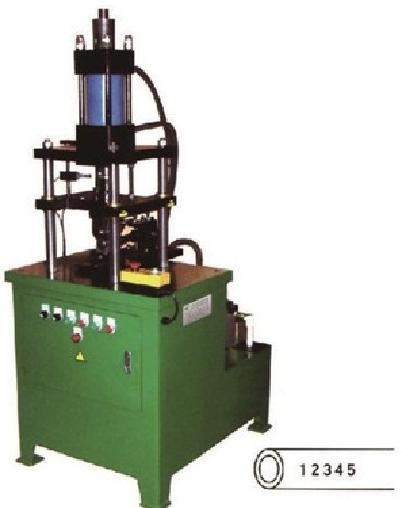

JEF-2035 Number Stamping Machine 380V, 3P, 5.5kW 500 PCS/HR 900×600×1750 mm 450 kg
Frequently Asked Questions
  • What is this frame equipment series used for?
    It is used for bicycle and e-bike frame tube processing, including notching, milling, reaming, chamfering, and number stamping.
  • Which machines are suitable for tube notching?
    JEF-2013 is suitable for down tube triple-head notching, while other models can be selected according to tube position and processing requirements.
  • Which machine is used for tube end chamfering?
    JEF-2034J is used for tube end chamfering.
  • Which machine is used for number stamping?
    JEF-2035 is used for frame or tube number stamping.
  • Can these machines be used for e-bike frame production?
    Yes. They are suitable for bicycle frames, electric bicycle frames, motorcycle frame parts, and other metal tube processing applications.
  • What information is needed for quotation?
    Please provide tube material, tube diameter, frame type, required process, production capacity, voltage requirement, and factory layout.
For Quotation

Please provide the following information:

  • Workpiece drawing
  • Material
  • Gear module
  • Gear diameter
  • Shaft length
  • Tolerance requirement
  • Surface finish requirement
  • Machining process
  • Production quantity
  • Automation requirement
