Product Description
HNC-52S Multi-Axis CNC Lathe Series with Y-Axis Turret and Modular Automation Options
The HNC-52S Multi-Axis CNC Lathe Series is a high-rigidity and high-precision CNC turning solution designed for precision turning, turning-milling compound machining, drilling, tapping, shaft part machining, disc part machining, and automated batch production. This series includes HNC-52SDY, HNC-52SY, and HNC-52TY, providing flexible configurations for different machining requirements.
The overall machine structure is designed through analysis and dynamic simulation, helping maintain long-term machining accuracy while ensuring stable and reliable operation. The wide bed base, high-strength spindle, and heavy-load roller linear guide rails greatly improve machine rigidity and reduce tool wear during continuous machining.
The turret integrates an orthogonal hard-guide Y-axis structure, offering compact design, simple programming, and convenient operation. This configuration is especially suitable for intensive and efficient machining of complex parts requiring turning, milling, drilling, and tapping in one setup.
Key Features
- HNC-52S multi-axis CNC lathe series for precision turning and turning-milling compound machining
- Model options include HNC-52SDY, HNC-52SY, and HNC-52TY
- Machine structure designed through analysis and dynamic simulation
- Maintains long-term accuracy with stable and reliable performance
- Wide bed base improves machine rigidity
- High-strength spindle supports heavy-duty precision machining
- Heavy-load roller linear guide rails reduce tool wear
- Orthogonal hard-guide Y-axis turret provides compact structure and easy programming
- Suitable for intensive and efficient processing of complex parts
- Supports turning, milling, drilling, and tapping in one setup
- Can connect with feeders, robots, tool setters, and swing-arm unloading systems
- Compatible with high-pressure chip removal and unmanned continuous production
- Modular design with diversified configurations for flexible production needs

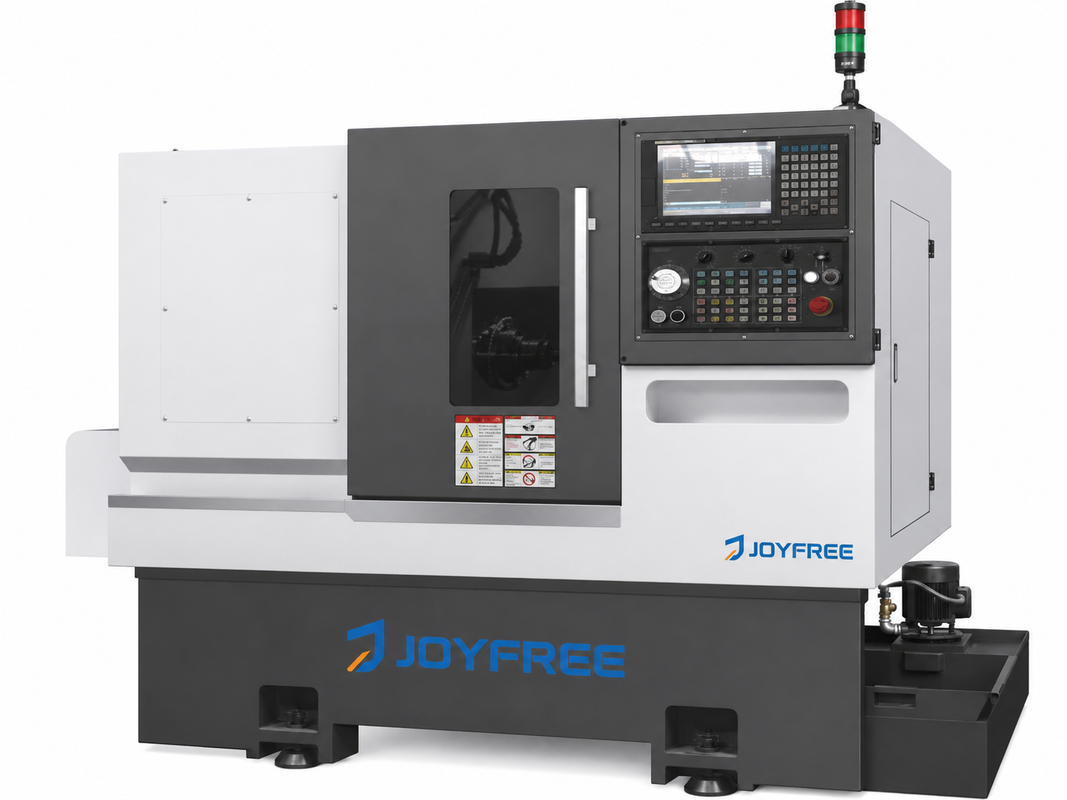

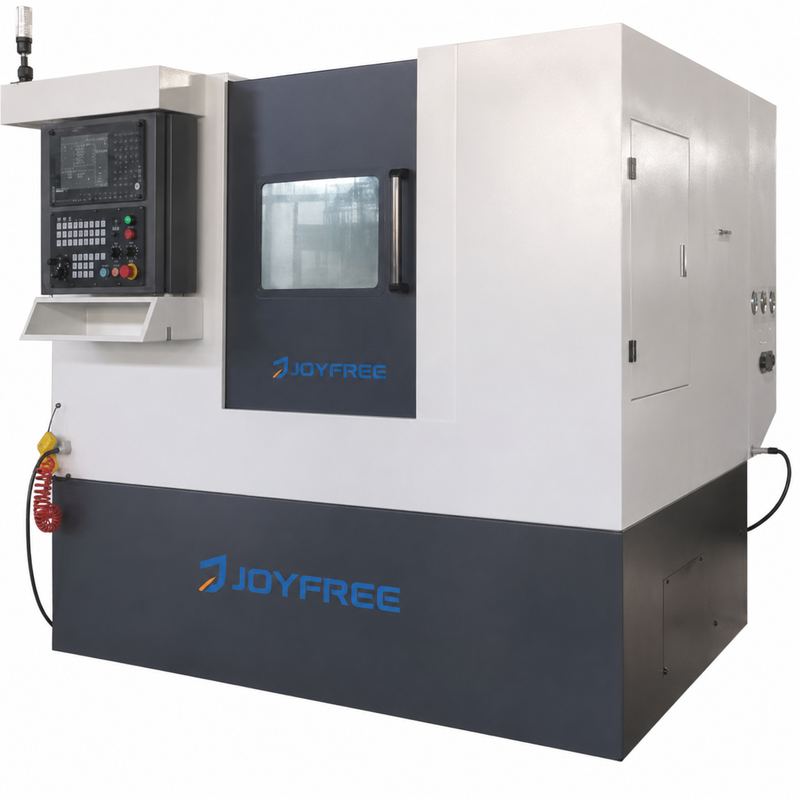

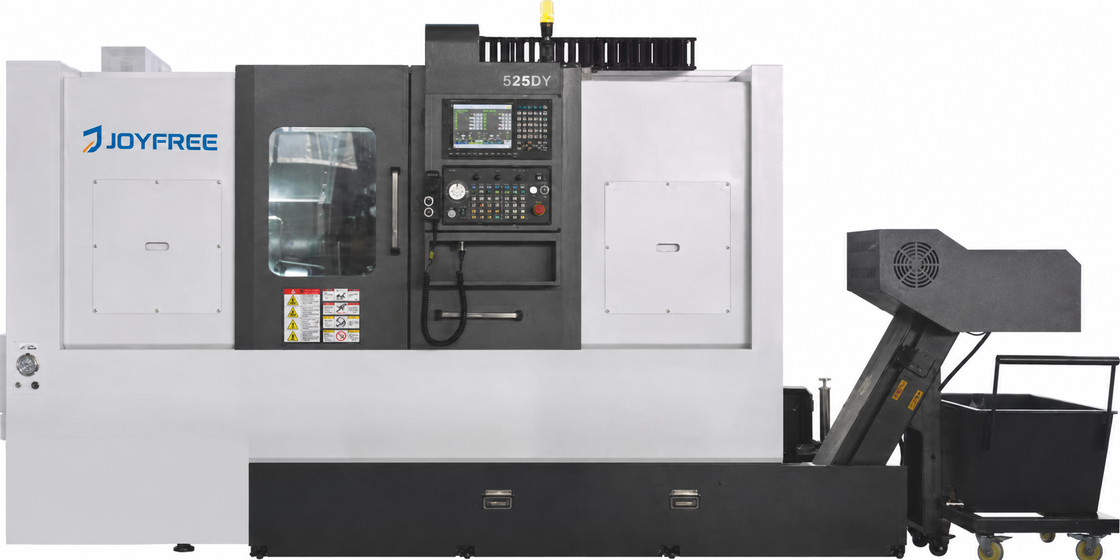

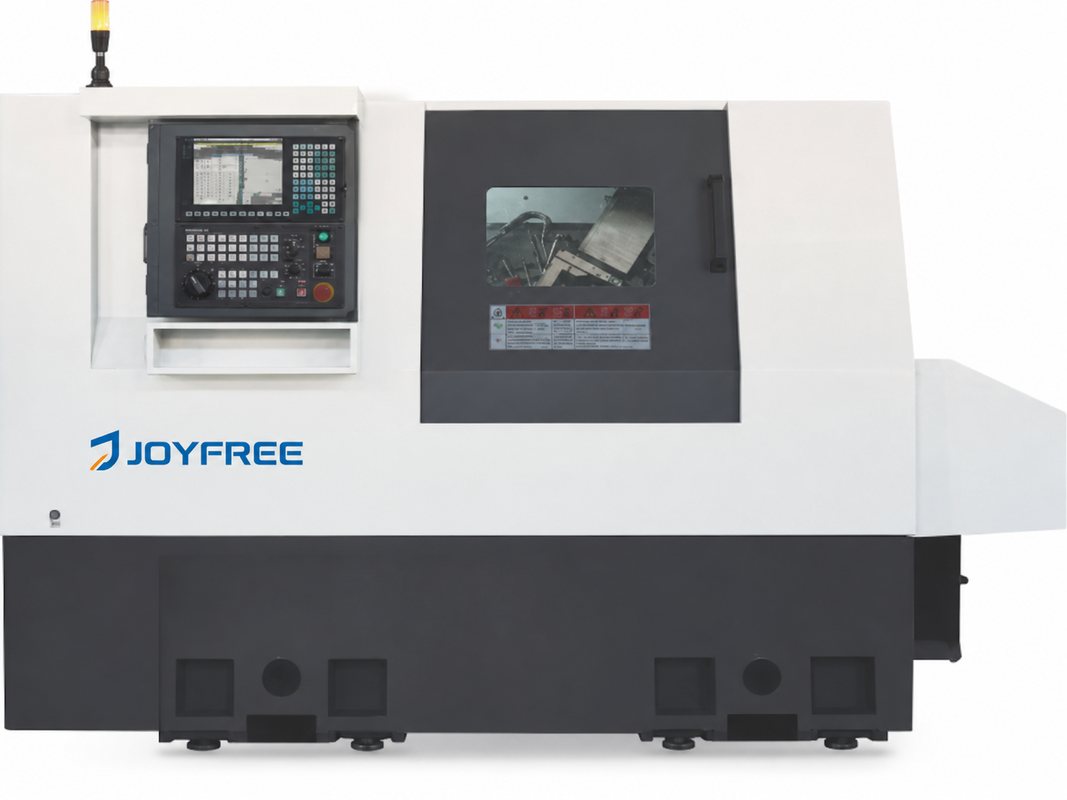

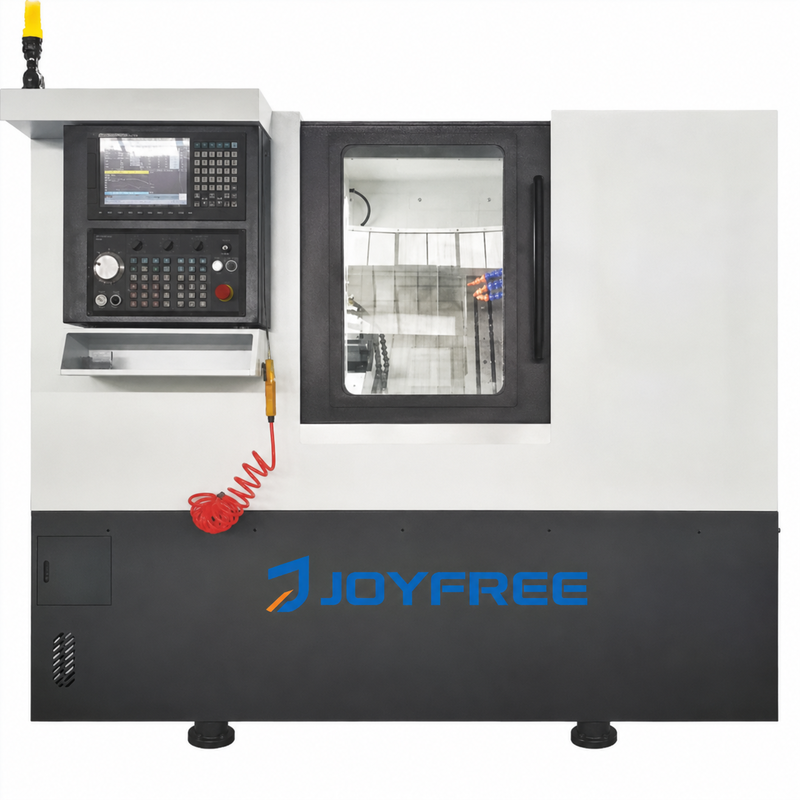

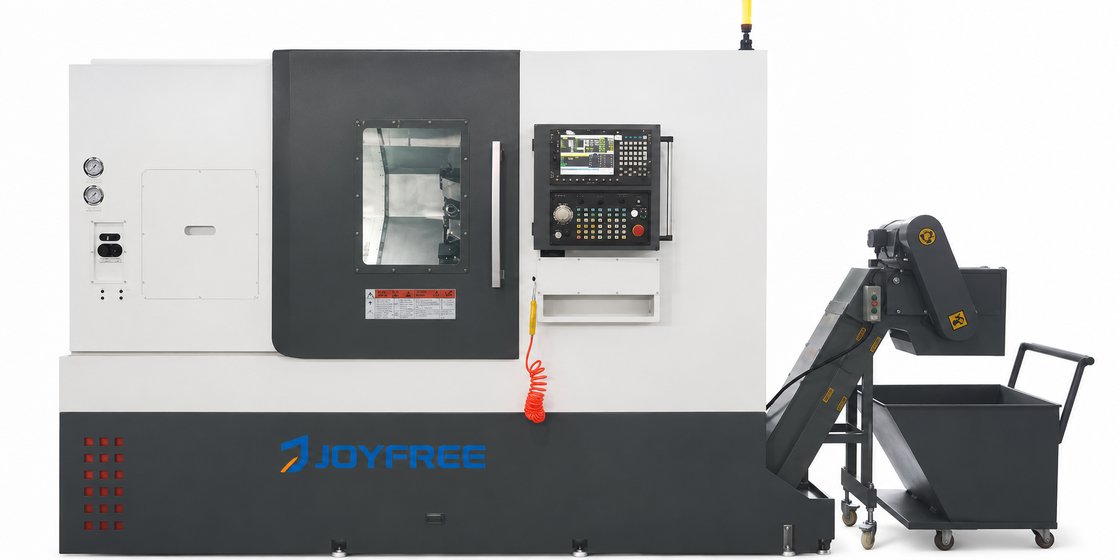

Product Images
Technical Specifications
Main Capacity
| Item | HNC-52SDY | HNC-52SY | HNC-52TY |
|---|---|---|---|
| Max. turning diameter | Φ320 mm | Φ320 mm | Φ320 mm |
| Standard turning diameter | Φ200 mm | Φ200 mm | Φ200 mm |
| Max. bar through-hole | Φ50 mm | Φ50 mm | Φ50 mm |
| Max. turning length | 270 mm | 500 mm | 550 mm |
| Spindle front end type | A2-6 | A2-6 | A2-6 |
| Diameter of spindle bore | Φ66 mm | Φ66 mm | Φ66 mm |
| Spindle speed range | 50-4200 r/min | 50-4200 r/min | 50-4200 r/min |
Back Axis / Tailstock
| Item | HNC-52SDY | HNC-52SY | HNC-52TY |
|---|---|---|---|
| Back axis max. turning diameter | Φ320 mm | Φ320 mm | -- |
| Back axis max. bar through-hole | Φ45 mm | Φ45 mm | -- |
| Back axis max. turning length | 240 mm | 240 mm | -- |
| Back axis front end type | A2-5 | A2-5 | -- |
| Back axis spindle bore | Φ56 mm | Φ56 mm | -- |
| Back axis speed range | 55-6000 r/min | 55-6000 r/min | -- |
| Tailstock center distance | -- | -- | 500 mm |
| Tailstock specification | -- | -- | MT4 |
C-Axis and Feed
| Item | HNC-52SDY | HNC-52SY | HNC-52TY |
|---|---|---|---|
| C1/C2 min. setting unit | 0.0001° | 0.0001° | 0.0001° |
| C1/C2 positioning accuracy | 1.5′ | 1.5′ | 1.5′ |
| X1/Y1/Z1-axis travel | 205/110/330 mm | 205/110/650 mm | 205/110/650 mm |
| X2/Y2/Z2-axis travel | 205/110/765 mm | --/--/765 mm | -- |
| Rapid speed | 24 m/min | 24 m/min | 24 m/min |
Motor Power and Tooling
| Item | HNC-52SDY | HNC-52SY | HNC-52TY |
|---|---|---|---|
| Spindle motor | 11 kW | 11 kW | 11 kW |
| Back axis motor | 11 kW | 11 kW | -- |
| X1/Y1/Z1-axis motor | 2.4/2.4/3.1 kW | 2.4/2.4/3.1 kW | 2.4/2.4/3.1 kW |
| X2/Y2/Z2-axis motor | 2.4/2.4/3.1 kW | --/--/3.1 kW | -- |
| Power tool 1 | 3.1 kW | 3.1 kW | 3.1 kW |
| Power tool 2 | 3.1 kW | -- | -- |
| Tool quantity | 12 tools / 12 tools | 12 tools | 12 tools |
| Turning / boring tool size | 25×25 mm / Φ32 mm | 25×25 mm / Φ32 mm | 25×25 mm / Φ32 mm |
| Power tool holder specification | ER32 / Φ2-Φ20 | ER32 / Φ2-Φ20 | ER32 / Φ2-Φ20 |
| Max. drilling / tapping size | Φ20 / M12 | Φ20 / M12 | Φ20 / M12 |
| Max. power tool speed | 4000 r/min | 4000 r/min | 4000 r/min |
Main Configuration
| Item | HNC-52SDY | HNC-52SY | HNC-52TY |
|---|---|---|---|
| CNC system | SYNTEC dual-channel | SYNTEC single-channel | SYNTEC single-channel |
| Main structure type | Dual spindle + dual Y-axis turret | Dual spindle + single Y-axis turret | Single spindle + single Y-axis turret + tailstock |
| Machine weight | 6300 kg | 5500 kg | ≈5000 kg |
Frequently Asked Questions
What is the HNC-52S Multi-Axis CNC Lathe Series used for?
It is mainly used for precision turning, turning-milling compound machining, drilling, tapping, milling, shaft part machining, disc part machining, and automated batch production.
What models are included in the HNC-52S series?
The series includes HNC-52SDY, HNC-52SY, and HNC-52TY.
What is the maximum turning diameter?
The maximum turning diameter is Φ 320 mm.
What is the maximum bar through-hole?
The maximum bar through-hole of the main spindle is Φ 50 mm.
What is the difference between HNC-52SDY, HNC-52SY, and HNC-52TY?
The HNC-52SDY adopts dual spindles and dual Y-axis turrets. The HNC-52SY adopts dual spindles and a single Y-axis turret. The HNC-52TY adopts a single spindle, single Y-axis turret, and tailstock.
Does this series support automated production?
Yes. It can connect with feeders, robots, tool setters, swing-arm discharge mechanisms, high-pressure chip removal systems, and other auxiliary equipment for unattended continuous production.
What information is needed for quotation?
Please provide workpiece drawing, material, diameter, length, tolerance requirement, surface roughness requirement, machining process, automation requirement, and preferred model configuration.
Contact us for detailed specifications and pricing information.
