DF Series Five-Face Turning-Milling Full-Function CNC Machine with B-Axis and Disc-Type Tool Magazine
Product Overview

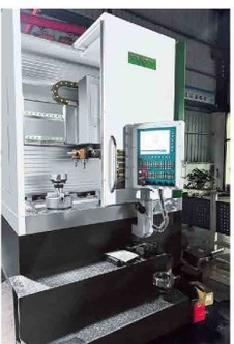

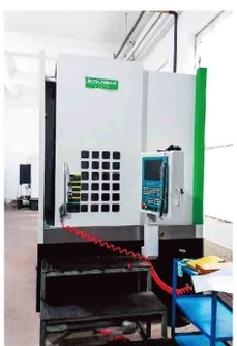

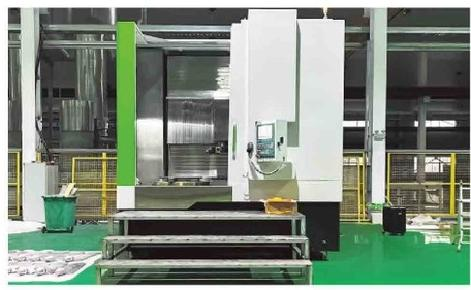

The DF Series Five-Face Turning-Milling Full-Function CNC Machine is a high-rigidity compound machining solution that integrates the functions of a vertical lathe, vertical machining center, and horizontal machining center in one machine. It is designed for face turning, heavy-duty face milling, drilling, side milling, side drilling, and multi-face compound machining of complex parts.
Compared with traditional separated machining processes, the DF series can reduce workpiece transfer, repeated clamping, and alignment time. It helps save labor, maintain machining accuracy, and improve production efficiency.

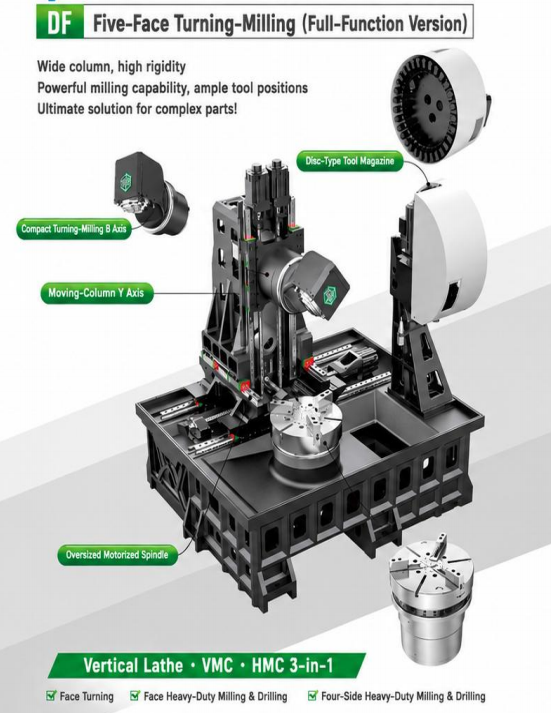

The machine adopts a wide-column structure, moving-column Y-axis, compact turning-milling B-axis, oversized motorized work spindle, and disc-type tool magazine. With strong milling capability and ample tool positions, it is suitable for complex parts requiring multiple machining processes in one clamping.

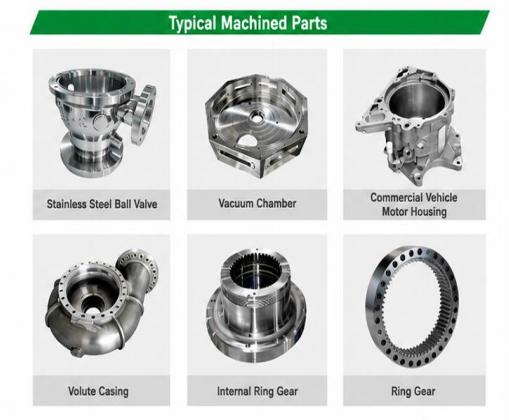

The DF series is especially suitable for flange parts, disc parts, valve components, pump parts, gearbox housings, bearing seats, precision mechanical parts, and medium-sized complex components.
Key Features
- Five-face turning-milling full-function CNC machine

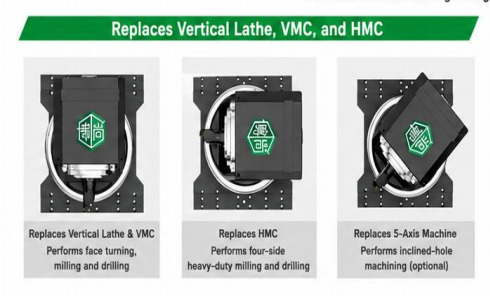

- Combines vertical lathe, VMC, and HMC functions in one machine
- Supports face turning, heavy-duty face milling, drilling, side milling, and side drilling
- Wide-column structure provides high rigidity
- Compact turning-milling B-axis supports flexible compound machining
- Moving-column Y-axis supports side machining and multi-face processing
- Disc-type tool magazine provides ample tool positions
- Oversized motorized work spindle offers strong turning performance
- Tool spindle supports high-speed milling and drilling
- Reduces transfer, clamping, and alignment time between operations
- Helps improve machining accuracy and production efficiency
- Suitable for complex parts requiring multiple processes in one clamping
Product Images
Technical Specifications
| Item | Unit | DF50 | DF60 |
|---|---|---|---|
| Max. Swing Diameter | mm | Ø550 | Ø650 |
| Max. Machining Diameter | mm | Ø500 | Ø600 |
| Max. Machining Height | mm | 500, Max. Bore Turning Depth 250 | 600, Max. Bore Turning Depth 300 |
| X-Axis Travel | mm | -80~+300 | -80~+350 |
| Y-Axis Travel | mm | ±150 | ±150 |
| Z-Axis Travel | mm | 550 | 650 |
| B-Axis Travel | ° | 0° / 90° | 0° / 90° |
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeat Positioning Accuracy | mm | 0.004 | 0.004 |
| C-Axis Positioning Accuracy | ″ | ±30, Optional ±5 | ±30, Optional ±5 |
| C-Axis Repeat Positioning Accuracy | ″ | ±15, Optional ±2 | ±15, Optional ±2 |
| Tool Spindle Nose Specification | ISO | HSK-A63 / T63 | HSK-A63 / T63 |
| Tool Spindle Max. Speed | rpm | 8000, Optional 12000-15000 | 8000, Optional 12000-15000 |
| Tool Spindle Rated / Max. Power | kW | 22 / 27 | 27 / 35 |
| Tool Spindle Rated / Max. Torque | Nm | 60 / 90 | 80 / 120 |
| Work Spindle Diameter | mm | Ø400 | Ø460 |
| Chuck Size | inch | 12 | 15 |
| Spindle Register | mm | Ø300 | Ø380 |
| Spindle Bearing Diameter | mm | Ø300 | Ø385 |
| Work Spindle Max. Speed | rpm | 1500 | 1200 |
| Work Spindle Rated / Max. Power | kW | 37 / 45 | 40 / 50 |
| Work Spindle Rated / Max. Torque | Nm | 600 / 1000 | 800 / 1200 |
| Tool Magazine Capacity | T | 24, Optional 30-60T | 24, Optional 30-60T |
| Adjacent / Max. Tool Diameter | mm | Ø75 / Ø150 | Ø75 / Ø150 |
| Max. Tool Length | mm | 300 | 300 |
| Max. Tool Weight | kg | 7 | 7 |
| Tool Change Time | s | 2.5 | 2.5 |
| X-Axis Rapid Traverse | m/min | 30 | 30 |
| Y-Axis Rapid Traverse | m/min | 15 | 15 |
| Z-Axis Rapid Traverse | m/min | 30 | 30 |
| Approx. Machine Weight | kg | 9800 | 10800 |
Frequently Asked Questions
What is the DF Series machine used for?
It is used for five-face turning-milling compound machining, including face turning, face milling, drilling, side milling, side drilling, and multi-process machining in one clamping.
What is the difference between DF50 and DF60?
The DF60 has a larger machining diameter, higher machining height, larger work spindle, stronger spindle torque, and heavier machine structure than the DF50.
Does the machine have a tool magazine?
Yes. The machine is equipped with a 24-tool disc-type tool magazine, with optional 30-60 tool positions.
What is the maximum machining diameter?
The maximum machining diameter is Ø500 mm for DF50 and Ø600 mm for DF60.
What is the maximum tool spindle speed?
The standard tool spindle speed is 8000 rpm, with optional 12000-15000 rpm.
Can this machine reduce repeated clamping?
Yes. It can complete turning, milling, drilling, and side machining in one clamping, reducing transfer, alignment time, and secondary positioning errors.
What information is needed for quotation?
Please provide workpiece drawing, material, machining diameter, machining height, required processes, tolerance requirement, surface roughness requirement, production quantity, and preferred model.
