VTM Series Vertical Turning-Drilling Economy CNC Machine with Heavy-Duty Live Tool Turret
Product Overview

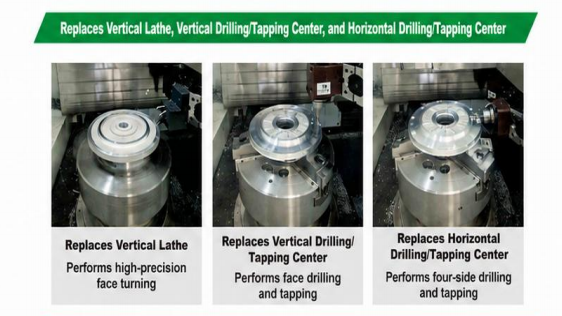

The VTM Series Vertical Turning-Drilling Economy CNC Machine is a practical 2-in-1 machining solution that combines the functions of a vertical lathe and drilling/tapping center. It is designed for face turning, face drilling, tapping, side drilling, and multi-process machining in one setup.
With a heavy-duty live tool turret and oversized motorized spindle, the machine can complete turning and drilling operations without repeated workpiece transfer and clamping. This helps reduce alignment time, improve machining accuracy, and increase production efficiency.

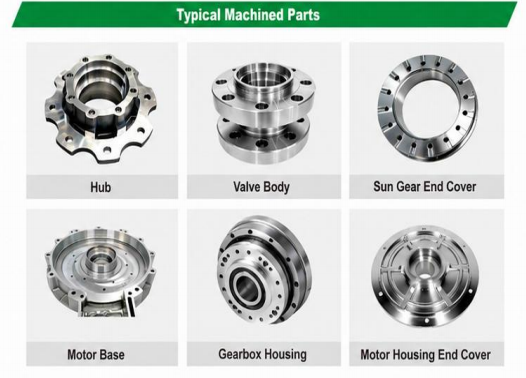

The VTM series is suitable for customers who need an economical vertical turning and drilling solution for disc parts, flange parts, valve parts, pump components, bearing seats, covers, and other medium-sized precision components.
Compared with full-function turning-milling machines, the VTM series focuses on turning, drilling, and tapping applications. It provides a cost-effective solution for factories that need stable machining accuracy and higher efficiency without complex B-axis or tool magazine configurations.
Key Features
- Vertical turning and drilling/tapping 2-in-1 CNC machine
- Economy version for practical compound machining
- Supports face turning, face drilling, tapping, and side drilling

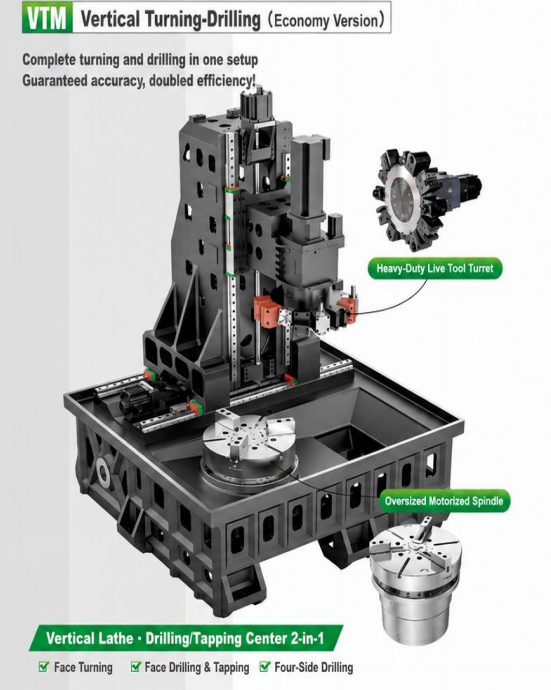

- Heavy-duty live tool turret improves machining flexibility
- Oversized motorized spindle provides strong turning performance
- Completes turning and drilling in one setup
- Reduces repeated clamping and alignment time
- Helps maintain machining accuracy and improve efficiency
- 12-station BMT65 live tool turret
- Hydraulic 3-jaw hard-jaw chuck configuration
- Suitable for medium-sized disc parts, flange parts, and mechanical components

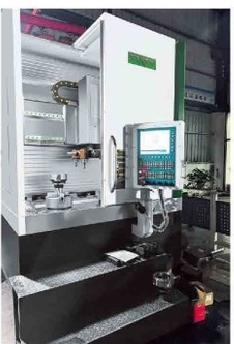

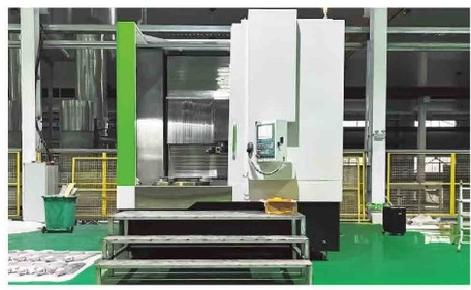

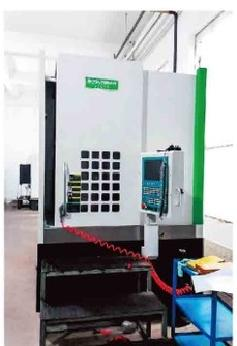

Product Images
Technical Specifications
| Item | Unit | VT50M | VT60M |
|---|---|---|---|
| Max. Swing Diameter | mm | Ø550 | Ø650 |
| Max. Machining Diameter | mm | Ø500 | Ø600 |
| Max. Machining Height | mm | 500, Max. Bore Turning Depth 250 | 560, Max. Bore Turning Depth 280 |
| X-Axis Travel | mm | -30~300 | -30~330 |
| Z-Axis Travel | mm | 550 | 600 |
| Positioning Accuracy | mm | 0.008 | 0.008 |
| Repeat Positioning Accuracy | mm | 0.004 | 0.004 |
| C-Axis Positioning Accuracy | ″ | ±30, tolerance ±5 | ±30, tolerance ±5 |
| C-Axis Repeat Positioning Accuracy | ″ | ±15, tolerance ±2 | ±15, tolerance ±2 |
| Spindle Diameter | mm | Ø400 | Ø460 |
| Chuck Size | inch | 12 | 15 |
| Spindle Register | mm | Ø300 | Ø380 |
| Spindle Bearing Diameter | mm | Ø300 | Ø385 |
| Max. Spindle Speed | rpm | 1500 | 1200 |
| Spindle Power | kW | 37/45 | 40/50 |
| Rated / Max. Spindle Torque | Nm | 600/1000 | 800/1200 |
| Chuck Type | -- | Hydraulic 3-Jaw Chuck, Hard Jaw | Hydraulic 3-Jaw Chuck, Hard Jaw |
| Turret Quantity | pcs | 12 | 12 |
| Live Tool Specification | -- | BMT65 | BMT65 |
| Tool Size | mm | □25 / Ø50 | □25 / Ø50 |
| Max. Tool Speed | rpm | 4000 | 4000 |
| Tool Change Time | s | 2 | 2 |
| Live Tool Power | kW | 6/9 | 7.5/11 |
| X-Axis Rapid Traverse | m/min | 20 | 20 |
| Z-Axis Rapid Traverse | m/min | 20 | 20 |
| Coolant Tank Capacity | L | 400 | 400 |
| Max. Load Capacity | kg | 500 | 600 |
| Approx. Machine Weight | kg | 6800 | 7800 |
Frequently Asked Questions
What is the VTM Series machine used for?
It is mainly used for vertical turning, face drilling, tapping, side drilling, and multi-process machining of medium-sized precision parts.
What is the difference between VT50M and VT60M?
The VT60M has a larger machining diameter, higher machining height, larger spindle diameter, stronger spindle torque, and higher load capacity than the VT50M.
Does the machine support milling?
The VTM series mainly focuses on turning, drilling, tapping, and side drilling. For heavier milling or five-face turning-milling, VTY or DF series would be more suitable.
What is the maximum machining diameter?
The maximum machining diameter is Ø 500 mm for VT50M and Ø 600 mm for VT60M.
What live tool specification does it use?
The machine uses a BMT65 live tool turret.
Can this machine reduce clamping time?
Yes. It can complete turning, drilling, and tapping in one setup, reducing repeated clamping and alignment time.
What information is needed for quotation?
Please provide workpiece drawing, material, machining diameter, machining height, required processes, tolerance requirement, surface roughness requirement, production quantity, and preferred model.
