CF Series Vertical Turning-Drilling Full-Function CNC Machine with Disc-Type Tool Magazine
Product Overview

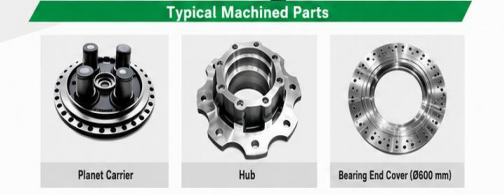

The CF Series Vertical Turning-Drilling Full-Function CNC Machine is a high-rigidity compound machining solution designed for medium and large parts such as planet carriers, flanges, disc parts, valve components, pump parts, bearing seats, gearbox parts, and precision mechanical components.
This machine combines the functions of a vertical lathe and vertical machining center in one unit. It supports face turning, heavy-duty face milling, drilling, tapping, and multi-process machining in a single clamping operation. This integrated approach reduces workpiece transfer, repeated clamping, and alignment time while improving machining accuracy and production efficiency.

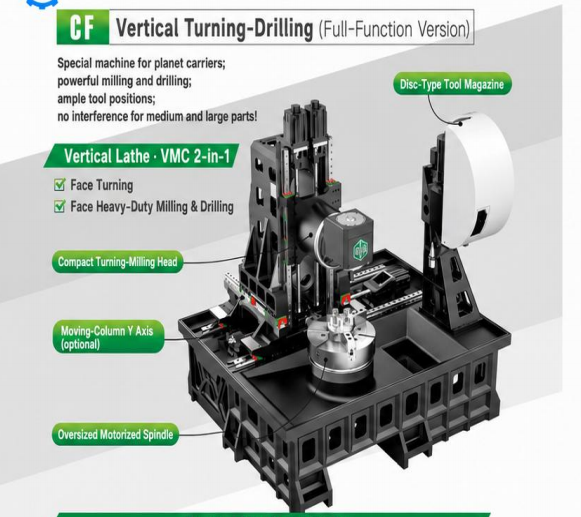

The CF series features an oversized motorized spindle, compact turning-milling head, disc-type tool magazine, and optional moving-column Y-axis. With powerful milling and drilling capabilities, ample tool positions, and a high-rigidity structure, it is particularly suitable for complex medium and large workpieces requiring stable machining performance.
Key Features
- Full-function vertical turning-drilling CNC machine
- Combines vertical lathe and VMC functions in one machine
- Designed for medium and large complex parts
- Suitable for planet carriers, flanges, disc parts, and mechanical components
- Supports face turning, heavy-duty face milling, drilling, and tapping
- Compact turning-milling head provides strong milling and drilling capability
- Disc-type tool magazine provides ample tool positions
- Optional moving-column Y-axis improves machining flexibility
- Oversized motorized spindle supports heavy-duty turning
- Reduces repeated clamping, transfer, and alignment time
- Improves machining accuracy and production efficiency
- Suitable for multi-process machining in one clamping

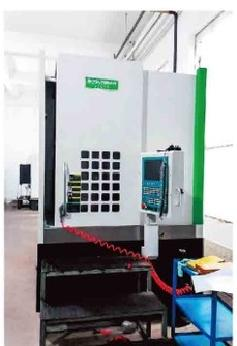

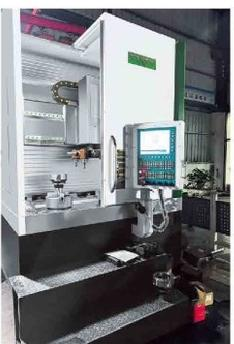

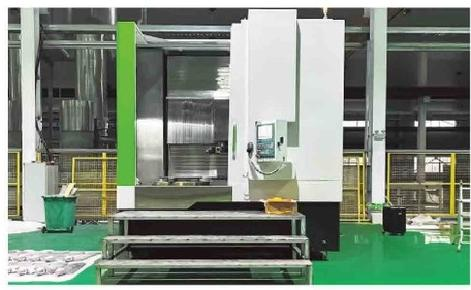

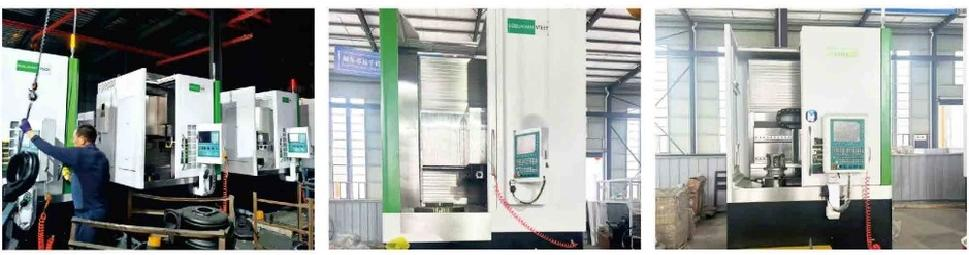

Product Images
Technical Specifications
| Item | Unit | CF60 | CF80 | CF100 |
|---|---|---|---|---|
| Max. Swing Diameter | mm | Ø650 | Ø850 | Ø1100 |
| Max. Machining Diameter | mm | Ø600 | Ø800 | Ø1000 |
| Max. Machining Height | mm | 600, Max. Chuck Depth 300 | 700, Max. Chuck Depth 350 | 1000, Max. Chuck Depth 500 |
| X-Axis Travel | mm | -80~+350 | -120~+500 | -150~+650 |
| Y-Axis Travel | mm | ±150 | ±150 | ±150 |
| Z-Axis Travel | mm | 650 | 750 | 1050 |
| B-Axis Travel | ° | 90° | 90° | 90° |
| Positioning Accuracy | mm | 0.008 | 0.01 | 0.012 |
| Repeat Positioning Accuracy | mm | 0.004 | 0.005 | 0.006 |
| C-Axis Positioning Accuracy | ″ | ±30, Selectable ±5 | ±30, Selectable ±5 | ±30, Selectable ±5 |
| C-Axis Repeat Positioning Accuracy | ″ | ±15, Selectable ±2 | ±15, Selectable ±2 | ±15, Selectable ±2 |
| Tool Spindle Taper | ISO | HSK-A63 / T63 | HSK-A63 / T63 | HSK-A100 / T100 |
| Tool Spindle Max. Speed | rpm | 8000, Opt. 12000-15000 | 6000, Opt. 12000-15000 | 4000, Opt. 8000-12000 |
| Tool Spindle Rated / Max. Power | kW | 27 / 35 | 30 / 37 | 45 / 55 |
| Tool Spindle Rated / Max. Torque | Nm | 80 / 120 | 120 / 180 | 340 / 500 |
| Workpiece Spindle Diameter | mm | Ø460 | Ø550 | Ø680 |
| Chuck Size | inch | 15 | 21 | 32 |
| Spindle Register | mm | Ø380 | Ø380 | Ø380 |
| Spindle Bearing Diameter | mm | Ø385 | Ø450 | Ø600 |
| Workpiece Spindle Max. Speed | rpm | 1200 | 800 | 450 |
| Workpiece Spindle Rated / Max. Power | kW | 40 / 50 | 50 / 65 | 65 / 90 |
| Workpiece Spindle Rated / Max. Torque | Nm | 800 / 1200 | 1200 / 1800 | 2500 / 4000 |
| Tool Magazine Capacity | T | 24, Opt. 30-60T | 24, Opt. 30-60T | 30, Opt. 40-60T |
| Adjacent / Max. Tool Diameter | mm | Ø75 / Ø150 | Ø75 / Ø150 | Ø100 / Ø200 |
| Max. Tool Length | mm | 300 | 300 | 400 |
| Max. Tool Weight | kg | 7 | 7 | 15 |
| Tool Change Time | s | 2.5 | 2.5 | 5 |
| X-Axis Rapid Traverse | m/min | 30 | 30 | 25 |
| Y-Axis Rapid Traverse | m/min | 15 | 15 | 10 |
| Z-Axis Rapid Traverse | m/min | 30 | 30 | 25 |
| Approx. Machine Weight | kg | 10800 | 13800 | 17800 |
Frequently Asked Questions
What is the CF Series CNC Machine used for?
It is mainly used for vertical turning, heavy-duty milling, drilling, tapping, and compound machining of medium and large precision parts.
What is the difference between CF60, CF80, and CF100?
The CF100 has the largest machining capacity, larger chuck size, stronger workpiece spindle torque, higher tool spindle torque, larger tool magazine capacity, and heavier machine structure than CF60 and CF80.
Does the machine have a tool magazine?
Yes. CF60 and CF80 are equipped with a 24-tool magazine, optional 30-60 tools. CF100 is equipped with a 30-tool magazine, optional 40-60 tools.
What is the maximum machining diameter?
The maximum machining diameter is Ø 600 mm for CF60, Ø 800 mm for CF80, and Ø 1000 mm for CF100.
Is the Y-axis available?
Yes. The machine can be equipped with a moving-column Y-axis. The Y-axis travel is ± 150 mm.
What parts is this machine especially suitable for?
It is especially suitable for planet carriers, flanges, valve parts, pump parts, bearing seats, gearbox parts, and other medium or large complex parts.
What information is needed for quotation?
Please provide workpiece drawing, material, machining diameter, machining height, required processes, tolerance requirement, surface roughness requirement, production quantity, and preferred model.
