High-Power Continuous Fiber Laser Cleaning Machine for Rust Removal, Paint Stripping and Heavy-Duty Industrial Cleaning
High-Power Continuous Fiber Laser Cleaning Machine for Rust Removal, Paint Stripping and Heavy-Duty Industrial Cleaning
Place of Origin:
China
Brand Name:
Queenly
Certification:
GS, CE, RoHS, ISO 9001
Contact Us
Request A Quote
Product Details
Model NO.:
UT260
Application:
Glass
Process Usage:
Metal-Cutting CNC Machine Tools
Movement Method:
Contour Control
Control Method:
Closed-Loop Control
Numerical Control:
CNC/MNC
Processing Precision:
0.01~0.02(mm)
Performance Classification:
High-End CNC Machine Tools
Condition:
New
Leading Time:
35days
Transport Package:
Pallet
Specification:
2550×3020×3000
Trademark:
Queenly
Origin:
China
Production Capacity:
50sets/Month
Payment & Shipping Terms
Minimum Order Quantity
1sert
Price
USD50000-USD100000
Packaging Details
Standard export packing
Delivery Time
15-30DAYS
Payment Terms
T/T
Supply Ability
30set/mouth
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

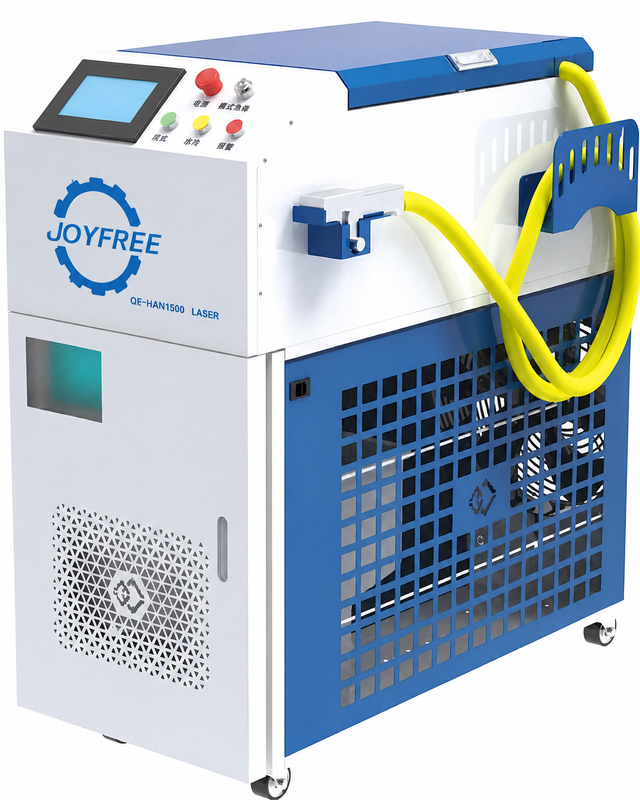

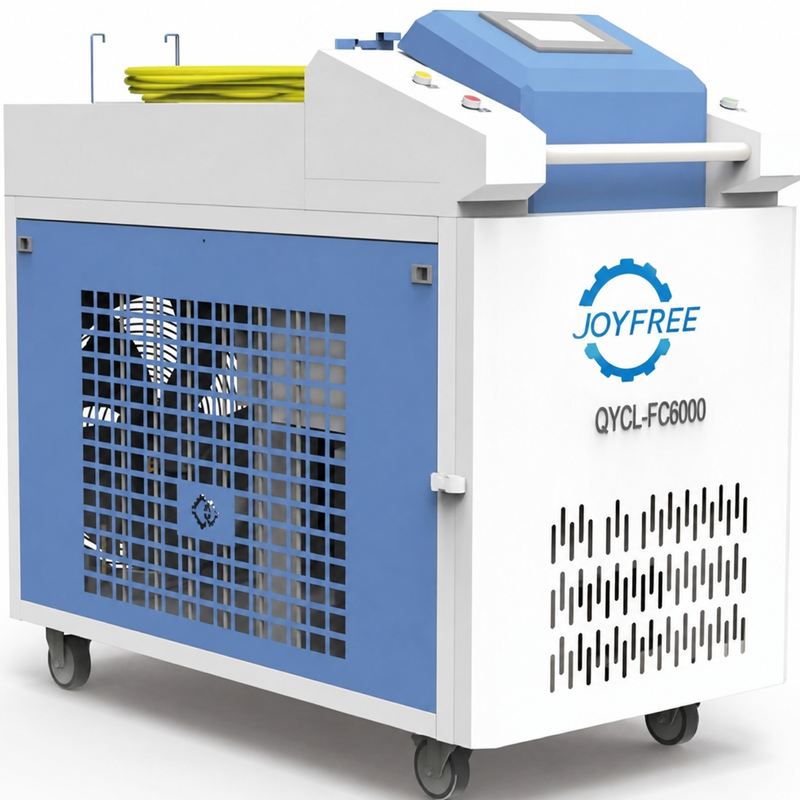

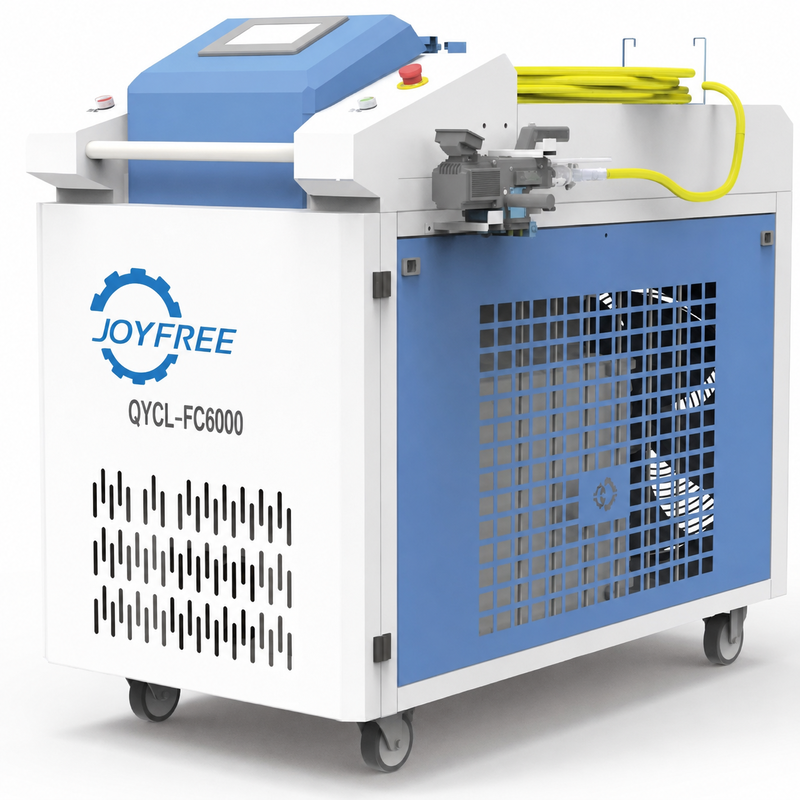

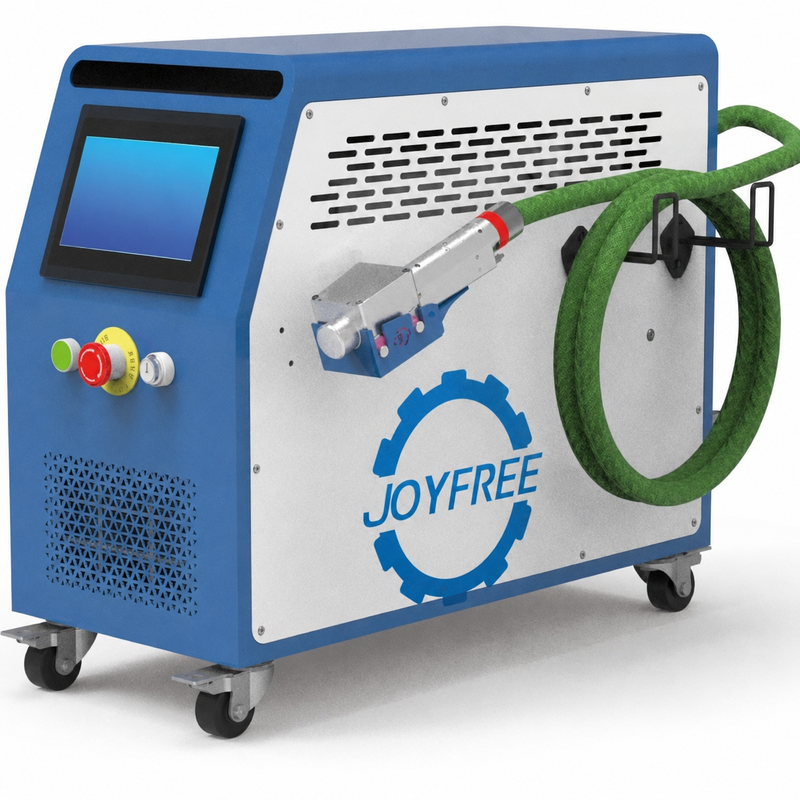

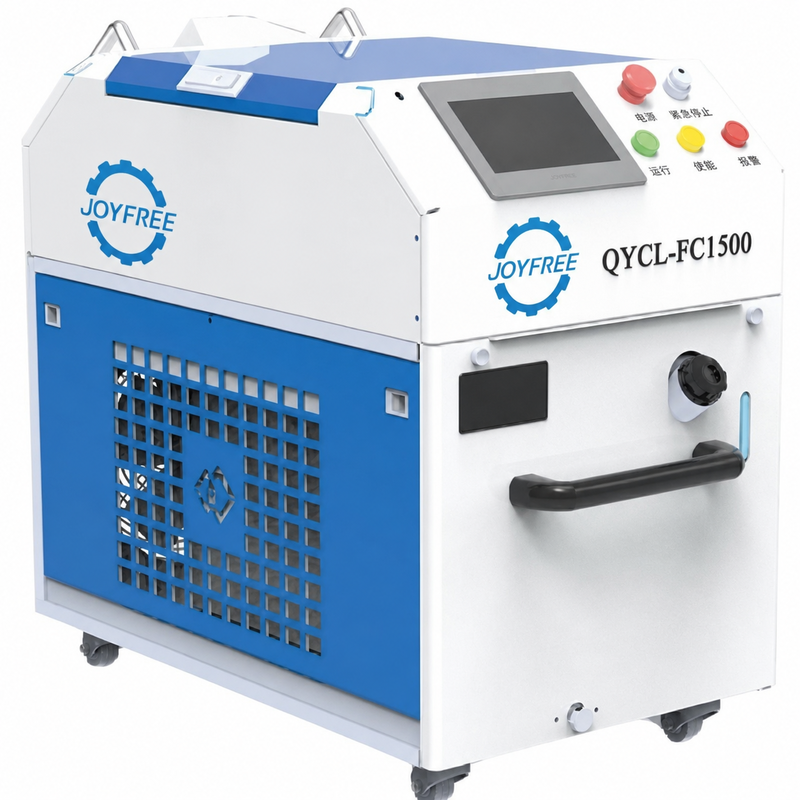

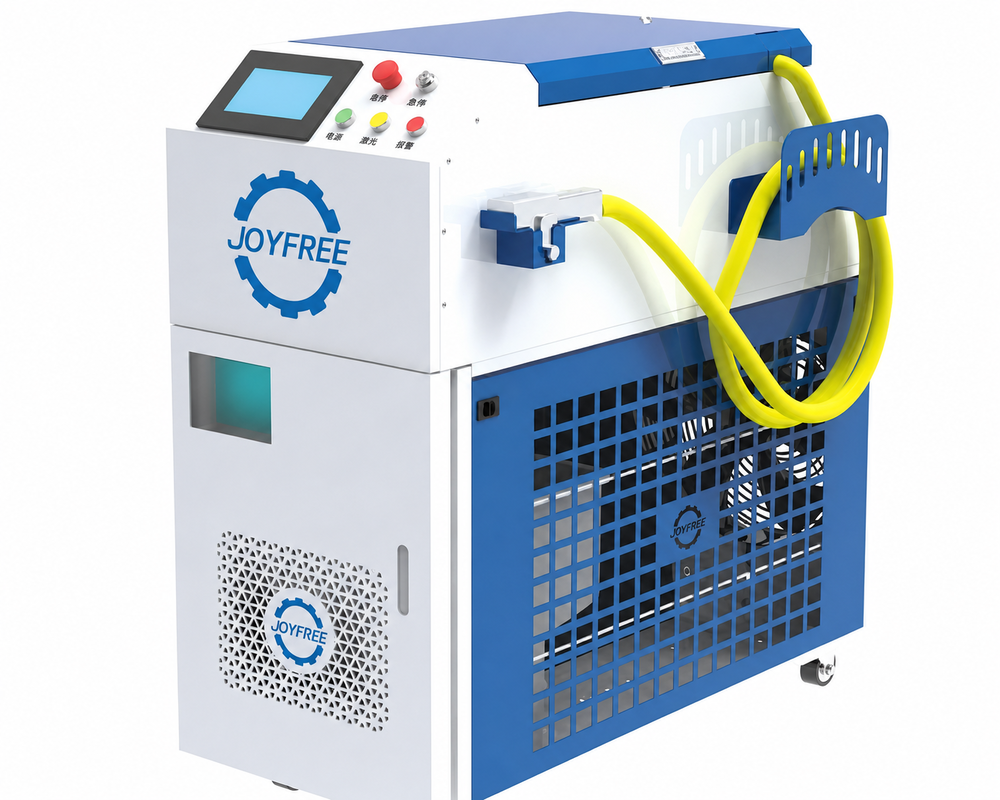

High-Power Continuous Fiber Laser Cleaning Machine for Rust Removal, Paint Stripping and Heavy-Duty Industrial Cleaning
Product Overview
The High-Power Continuous Fiber Laser Cleaning Machine is a reliable industrial laser cleaning solution designed for high-intensity surface cleaning, rust removal, paint stripping, coating removal, oxide layer cleaning, grease removal, weld seam cleaning, and heavy-duty metal surface treatment.
Equipped with famous brand core components, a self-developed intelligent control system, a visual multi-language touch control panel, and an ergonomic handheld cleaning head, this machine provides safe, stable, and efficient cleaning performance for demanding industrial environments.
This continuous fiber laser cleaning machine is suitable for complex working conditions in rail transit, marine ships, construction machinery, steel structures, industrial equipment, machinery manufacturing, and maintenance workshops. It can remove surface contaminants efficiently from metal workpieces and help restore or prepare surfaces before repair, welding, painting, coating, inspection, or refurbishment.
The machine can be equipped with MAX, Raycus, JPT, IPG and other famous brand laser sources according to customer requirements. It also adopts first-class electrical components from brands such as Schneider, Omron, and Chint, helping ensure safer, more stable, and more reliable long-term operation.
Key Features
- Continuous fiber laser cleaning machine for heavy-duty industrial cleaning
- Suitable for rust removal, paint stripping, coating removal and grease cleaning
- Famous brand laser sources including MAX, Raycus, JPT and IPG are customizable
- Schneider, Omron, Chint and other electrical components are available
- Self-developed intelligent control system provides stable operation
- Visual multi-language touch screen supports easier parameter control
- Ergonomic handheld cleaning head is lightweight and easy to operate
- Professional water and air circuit design improves cleaning head reliability
- Built-in temperature sensor helps protect the optical lens
- Integrated embedded water chiller supports long-time stable operation
- Rear air duct and side air intake grilles improve heat dissipation efficiency
- 360° silent universal wheels make movement and positioning easier
- Industrial bus communication interfaces support real-time system monitoring
- Suitable for rail, ship, construction machinery and complex industrial environments
Applications
The High-Power Continuous Fiber Laser Cleaning Machine is widely used in:
- Rust removal
- Paint stripping
- Coating removal
- Grease cleaning
- Oxide layer removal
- Metal surface cleaning
- Weld seam cleaning
- Rail transit maintenance
- Marine ship cleaning
- Construction machinery repair
- Steel structure cleaning
- Industrial equipment refurbishment
- Factory workshop cleaning
- Heavy-duty metal surface treatment
Technical Parameters
| Model | QYCL-FC1500 | QYCL-FC2000H | QYCL-FC2000 | QYCL-FC3000 |
|---|---|---|---|---|
| Laser power(W) | 1500 | 1700 | 2000 | 3000 |
| Rated power(kW) | 7.7 | 10 | 12.6 | |
| Rated current(A) | 35 | 45 | 25 | |
| Power adjustment range(%) | 10～100 | |||
| Scanning width (mm) | 10～150/10～300 | |||
| Focal distance (mm) | 400/800 | |||
| Working model | Continuous | |||
| Center wavelength (nm) | 1070～1090 | |||
| Cooling method | Water cooled | |||
| Working water temperature(℃) | Laser source: 22～26 | Fiber head: 28～30 | |||
| Fiber cable length (m) | 10 | 20 | 20 | 20 |
| Output fiber type | Standard QBH(LOC) | |||
| Supply voltage(V) | 220 | 380 | 380 | 380 |
| Laser head weight(kg) | 0.7 (Sup laser) | |||
| Weight of machine (kg) | 105±5 | 130±5 | 130±5 | 190±5 |
| Dimension of machine (mm) | 917*490*750 | 1105*490*833 | 1105*490*833 | 1237*505*1105 |
Installation Environment Requirements
- Ambient humidity 10%～85%RH, no condensation
- No explosive or corrosive gases exist in the place where the equipment is installed
- Ambient temperature 10℃~40℃
Frequently Asked Questions
1. What is the Continuous Fiber Laser Cleaning Machine used for?
The Continuous Fiber Laser Cleaning Machine is mainly used for rust removal, paint stripping, coating removal, grease cleaning, oxide layer removal, weld seam cleaning, and heavy-duty metal surface treatment.
2. What industries is this machine suitable for?
It is suitable for rail transit, marine ships, construction machinery, machinery manufacturing, steel structures, industrial equipment maintenance, repair workshops, and other high-intensity cleaning environments.
3. What laser source brands can be selected?
The machine can be customized with famous laser source brands such as MAX, Raycus, JPT, and IPG according to customer requirements.
4. What are the advantages of the handheld cleaning head?
The handheld cleaning head adopts an ergonomic design with small size and light weight. It is easier to operate, reduces operator fatigue, and includes professional water and air circuit design for stable long-time use.
5. How does the machine improve heat dissipation?
The machine uses an integrated embedded water chiller, rear air duct, and air intake grilles on both sides. This design helps improve heat dissipation efficiency and extend machine service life.
6. Is the machine easy to move?
Yes. The machine is equipped with 360° silent universal wheels, making it easier to move, rotate, and position in factories, workshops, maintenance sites, and industrial cleaning areas.
7. Can the machine support automated or intelligent control?
Yes. The visual multi-language touch control screen supports multiple industrial bus communication protocol interfaces and real-time control system monitoring, making it suitable for intelligent operation and automated cleaning applications.
